Two-Wire, Zero-Speed
Differential Gear Tooth Sensor IC
ATS684LSN
5
Allegro MicroSystems, LLC
115 Northeast Cutoff
Worcester, Massachusetts 01615-0036 U.S.A.
1.508.853.5000; www.allegromicro.com

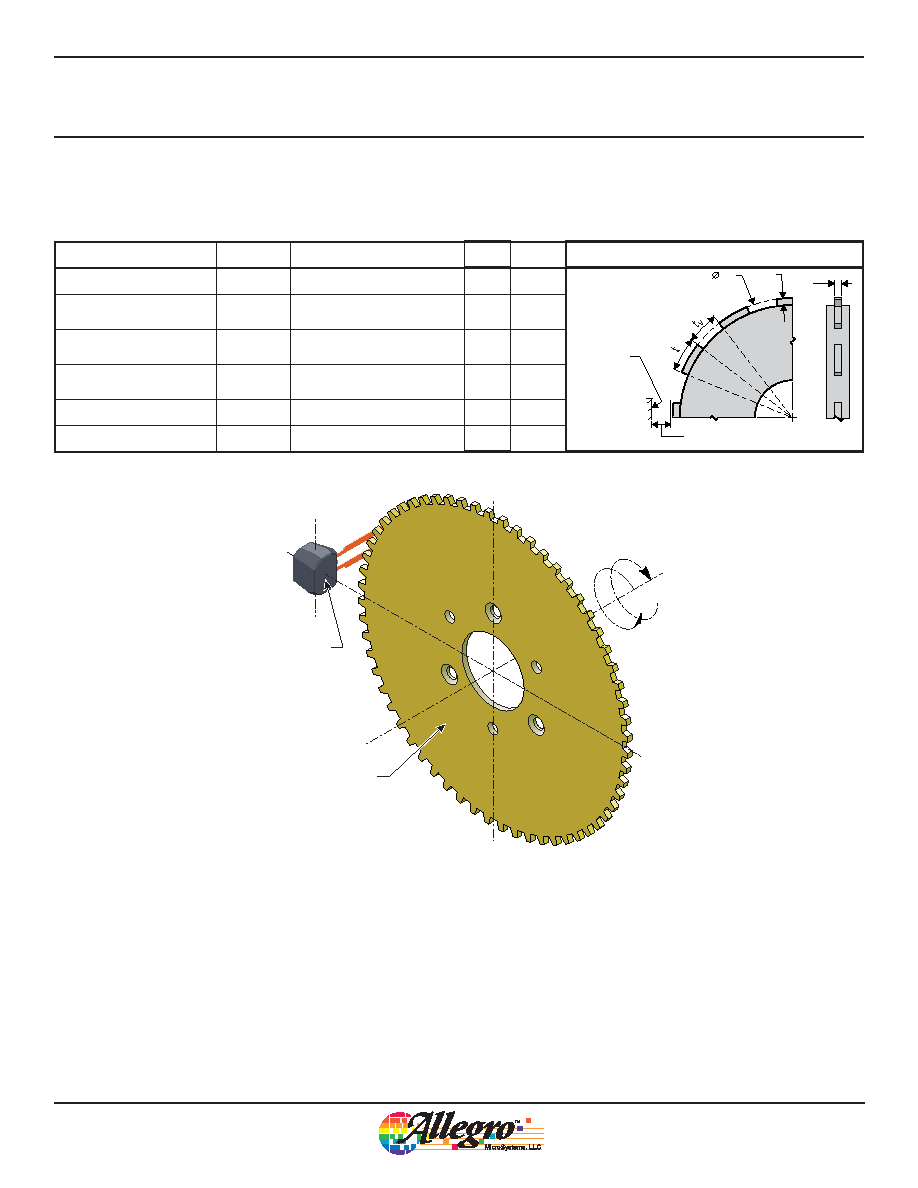

Reference Target 60-0 (60 Tooth Target)
Characteristics
Symbol
Test Conditions
Typ.
Units
Symbol Key
Outside Diameter
Do
Outside diameter of target
120
mm
Face Width
F
Breadth of tooth, with respect
to branded face
6
mm
Circular Tooth Length
t
Length of tooth, with respect
to branded face
3
deg.
Circular Valley Width
tv
Length of valley, with respect
to branded face
3
deg.
Tooth Whole Depth
ht
3
mm
Material
Low Carbon Steel
–
–
F
ht
Do
Air Gap
Branded Face
of Package
Reference
Target 60-0
Branded Face
of Sensor
