10 GHz to 20 GHz, GaAs, MMIC,

Double Balanced Mixer

Data Sheet

HMC554ALC3B

Rev. A

Document Feedback

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibilityisassumedbyAnalogDevicesforitsuse,norforanyinfringementsofpatentsorother

rightsofthirdpartiesthatmayresultfromitsuse.Specificationssubjecttochangewithoutnotice.No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

©2018–2019 Analog Devices, Inc. All rights reserved.

Technical Support

www.analog.com

FEATURES

Conversion loss: 8.5 dB

LO to RF isolation: 37 dB

Input IP3: 20 dBm

RoHS compliant, 2.90 mm × 2.90 mm, 12-terminal LCC package

APPLICATIONS

Microwave and very small aperture terminal (VSAT) radios

Test equipment

Military electronic warfare (EW); electronic countermeasure

(ECM); and command, control, communications and

intelligence (C3I)

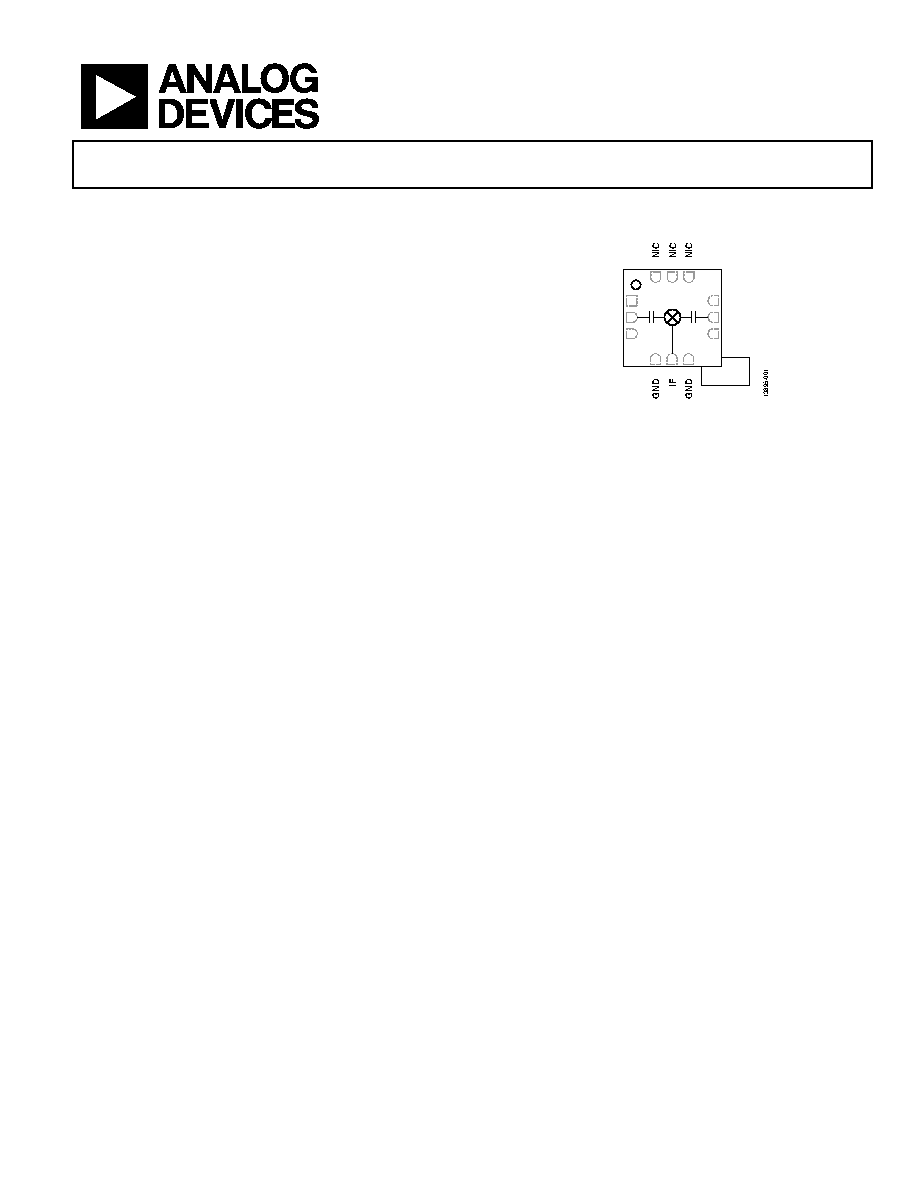

FUNCTIONAL BLOCK DIAGRAM

1

GND

7

GND

8

RF

9

GND

10

11

12

4

2

LO

3

GND

5

6

PACKAGE

BASE

GND

HMC554ALC3B

Figure 1.

GENERAL DESCRIPTION

The HMC554ALC3B is a general-purpose, double balanced

mixer in a leadless RoHS compliant leadless chip carrier (LCC)

package that can be used as an upconverter or downconverter

between 10 GHz and 20 GHz. This mixer is fabricated in a

gallium arsenide (GaAs) metal semiconductor field effect

transistor (MESFET) process and requires no external

components or matching circuitry. The HMC554ALC3B

provides excellent local oscillator (LO) to RF and LO to

intermediate frequency (IF) isolation due to optimized balun

structures. The RoHS compliant HMC554ALC3B eliminates the

need for wire bonding and is compatible with high volume

surface-mount manufacturing techniques.
