IF BANDWIDTH—DOWNCONVERTER

Upper Sideband, LO Frequency = 12 GHz

–5

–14

–13

–12

–11

–10

–9

–8

–7

–6

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

IF BANDWIDTH

TA = +85°C

TA = +25°C

TA = –40°C

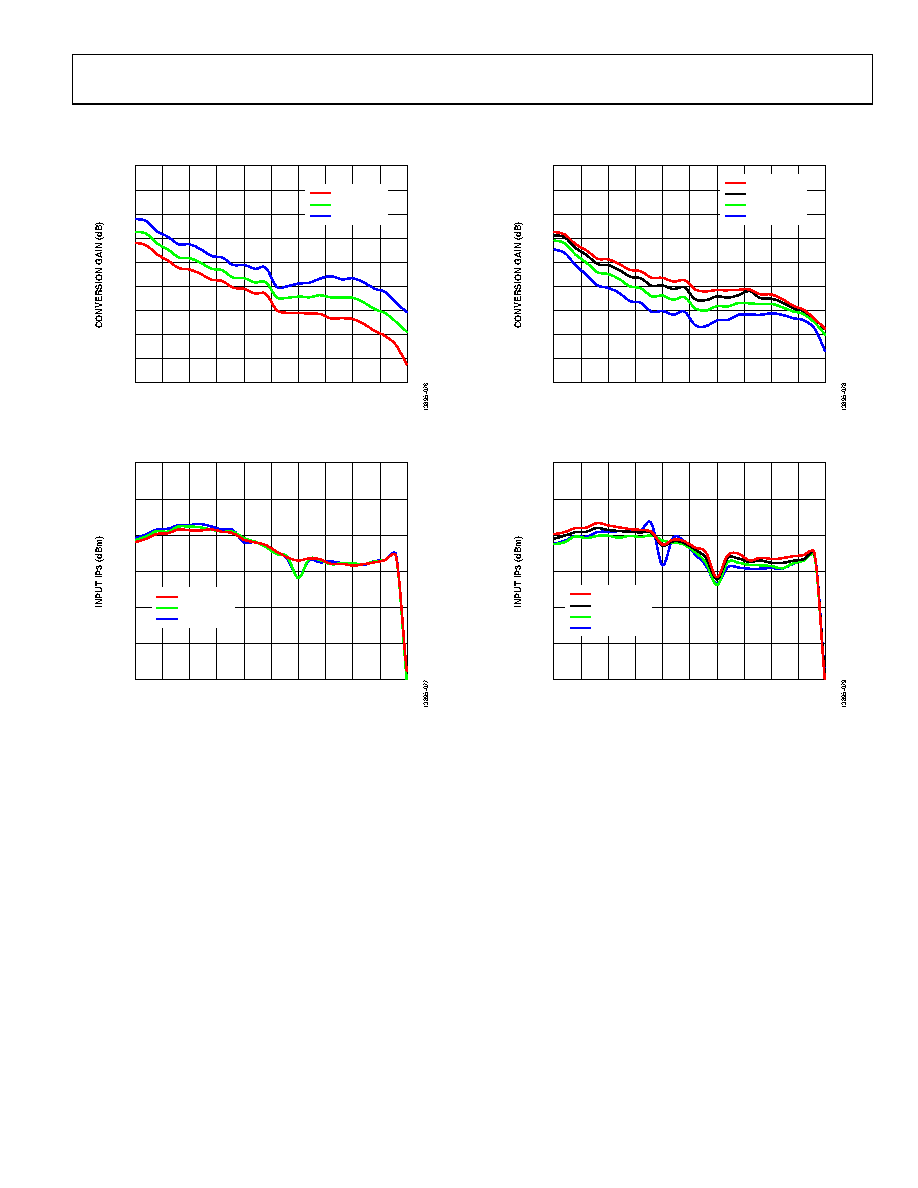

Figure 76. Conversion Gain vs. IF Frequency at Various Temperatures,

LO = 13 dBm

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

IF BANDWIDTH

TA = +85°C

TA = +25°C

TA = –40°C

Figure 77. Input IP3 vs. IF Frequency at Various Temperatures,

LO = 13 dBm

–5

–14

–13

–12

–11

–10

–9

–8

–7

–6

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

IF BANDWIDTH

LO = 15dBm

LO = 13dBm

LO = 11dBm

LO = 9dBm

Figure 78. Conversion Gain vs. IF Frequency at Various LO Power Levels,

TA = 25°C

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

IF BANDWIDTH

LO = 15dBm

LO = 13dBm

LO = 11dBm

LO = 9dBm

Figure 79. Input IP3 vs. IF Frequency at Various LO Power Levels,

TA = 25°C
