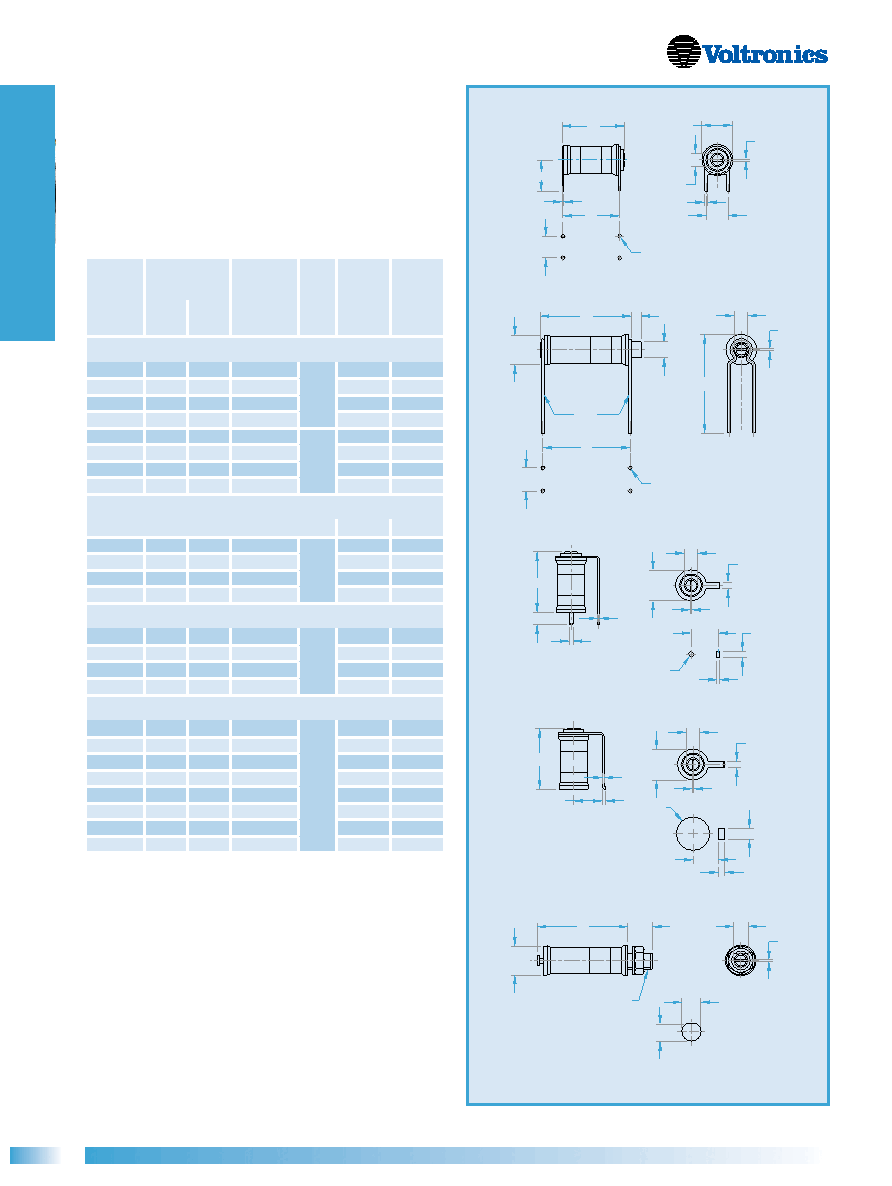

Extended Range Glass Trimmers - H Series
The “H” Series increases the standard maximum capacitance values
of Voltronics’ glass trimmer capacitors by almost 100%. This is
achieved by a new and unique technique which makes the wall of
the inner glass tube thinner than was previously possible.
General specifications for the “H” Series are the same as those of
stan¬dard embedded band glass trimmers (see Page 34) with the
following exceptions:
DC Working Voltage: 125
Temperature Coefficient: -150 ±150 ppm/°C
Figure 1
A.31 DIA
.020
.125 DIA
.031
.22
B
.31
.015
.22
#64 (.036 DIA)
4 HOLES
Figure 2
A
.12 MAX
.16 DIA
.31 DIA
#20
AWG
B
.020
.125 DIA
1” MIN
.234
#64 (.036 DIA)
4 HOLES
Figure 3
.31 DIA
.040
.067
.020
A
.125
.020
.070
.28
.050 DIA
.030
.125 DIA
Figure 4
A
.28
.020
.025
.31 DIA
.067
.020
.11
.065
.26
.34 DIA
.125 DIA
Figure 5
.020
.125 DIA
.25
A
.31 DIA
#10-32 TH’D
.195
.191
.175
.171
a Knowles Precision Devices brand
TM
Type
Capacitance
Range (pF)
Q (Min.)
at 1 MHz Fig. A ± .06 B ± .03
From
Below To Above
Horizontal Printed Circuit
HSP19
2
19
1000
1
0.37
0.3
HSP34
2
34
900
0.44
0.37
HSP46
2
46
800
0.52
0.45
HSP64
2
64
700
0.63
0.56
HTP96C
2
96
600
2
0.91
0.88
HTP130C
2
130
500
1.16
1.13
HTP210C
2
210
350
1.75
1.73
HTP250C
2
250
250
1.98
1.95
Vertical Printed Circuit
A ± .03
HSF19
2
19
1000
3
0.34
HSF34
2
34
900
0.41
HSF46
2
46
800
0.49
HSF64
2
64
700
0.6
Surface Mount
HSM19
2
19
1000
4
0.34
HSM34
2
34
900
0.41
HSM46
2
46
800
0.49
HSM64
2
64
700
0.6
Panel Mount
HTM19C
2
19
1000
5
0.37
HTM34C
2
34
900
0.45
HTM46C
2
46
800
0.52
HTM64C
2
64
700
0.63
HTM96C
2
96
600
0.92
HTM130C
2
130
500
1.17
HTM210C
2
210
350
1.77
HTM250C
2
250
250
2
