B

A

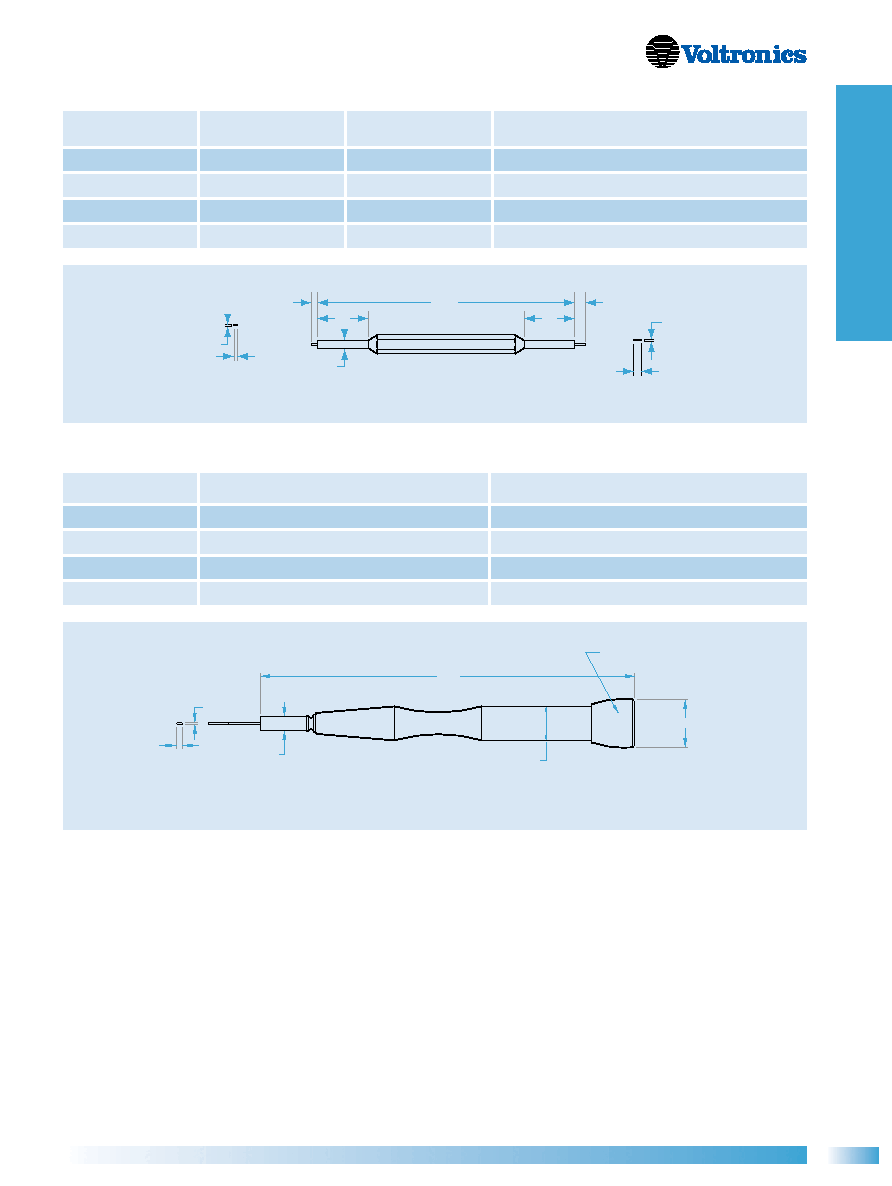

METAL (Fig.1)

Part No.

Tip A

Tip B

Capacitor Series

TT-100

.110 x .018

.070 x .012

A, E, K, KE, DRO, Glass, NT P

TT-200

.110 x .018

.032 x .088

A, E, K, KE, DRO, Glass, NT___

TT-300

.060 x .018

.070 x .012

A1, A3 P

TT-400

.060 x .018

.036 x .012

A1, A3, A2, A4

Tuning Tools

Ceramic (Fig.2)

Part No.

Tip A

Capacitor Series

TT-500

.07X.016

A1, A3, A, E, K, KE, DRO

TT-600

.10X.016

Glass, NT

TT-700

.050X.016

P

TT-900

.038X.016

A2, A4

Notes: The TT-500 thru TT-900 tuning tools are ideal for continual use. They fit into the hand with the rotatable top fixed in the palm. The tips are made of

high strength ceramic. Use these tools where metal tips affect tuning.

4.30

ROTATES TO ALLOW

FOR EASY TUNING

Ø .39

Ø .55

Ø .16

A

B

VOLTRONICS

4.50

.100

.190

.88

.88

.115 dia.

.012

.036

B

A

Tuning Tools

Fig. 1

Fig. 2
