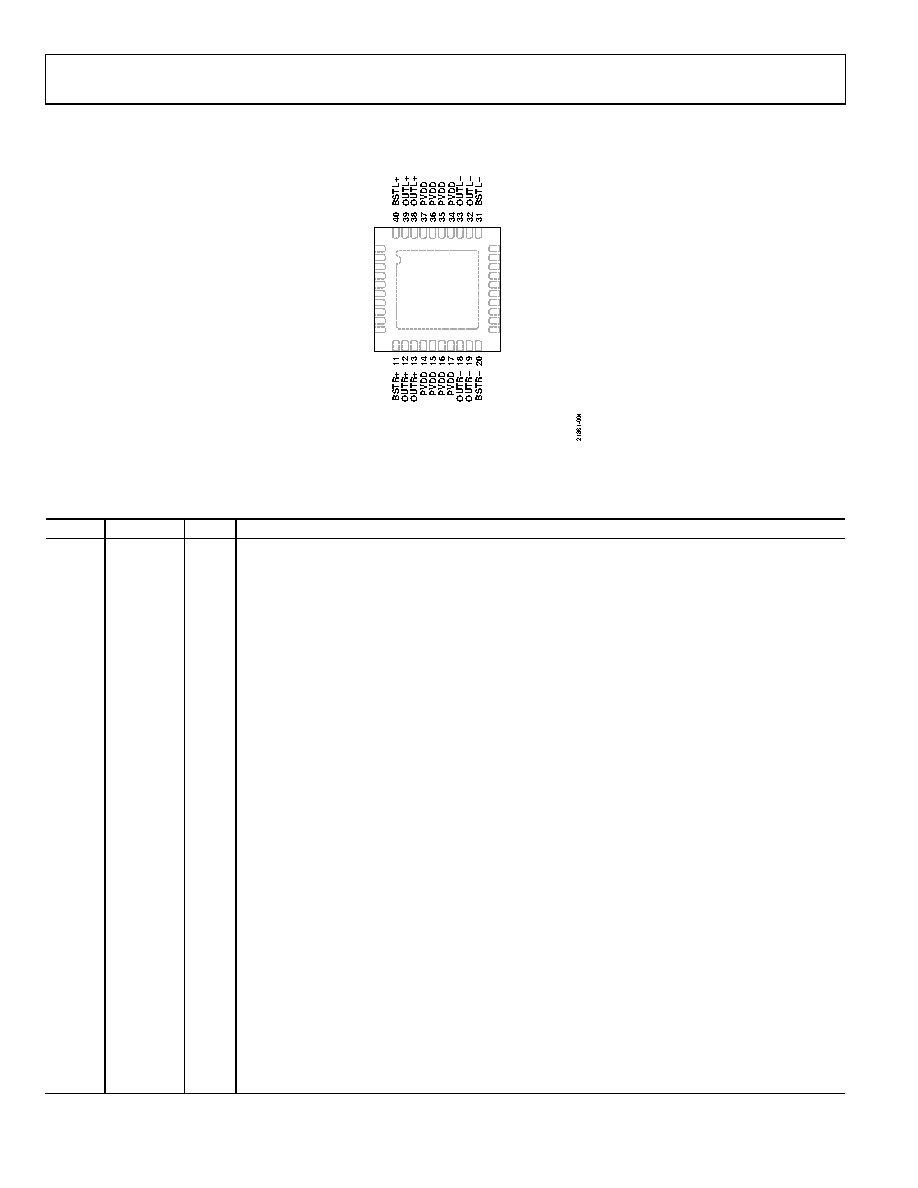

12 / 58 page ![]() SSM3582A Data Sheet Rev. A | Page 12 of 58 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 1 PGND 2 PGND 3 AVDD_EN NOTES 1. USE MULTIPLE VIAS TO CONNECT THE EXPOSED PAD TO THE GROUND PLANE ON THE PCB. 4 SCL 5 SDA 6 FSYNC 7 SDATA 8 BCLK 9 PGND 10 PGND 23 DVDD_EN 24 AVDD 25 AGND 26 ADDR0 27 ADDR1 28 DVDD 29 PGND 30 PGND 22 PGND 21 PGND SSM3582A TOP VIEW (Not to Scale) Figure 6. Pin Configuration Table 11. Pin Function Descriptions Pin No. Mnemonic Type1 Description 1 PGND PWR Left Channel Power Stage Ground. 2 PGND PWR Left Channel Power Stage Ground. 3 AVDD_EN AIN 5 V AVDD Regulator Enable. Connect this pin to PVDD to enable the AVDD regulator or connect to AGND to disable the regulator. When this pin is connected to PVDD, the regulator is enabled. When this pin is connected to AGND, the regulator is disabled. 4 SCL DIN I2C Clock Input. 5 SDA DIO I2C Data. 6 FSYNC DIN I2S/TDM Frame Sync Input. 7 SDATA DIN I2S/TDM Serial Data Input. 8 BCLK DIN I2S/TDM Bit Clock Input. 9 PGND PWR Right Channel Power Stage Ground. 10 PGND PWR Right Channel Power Stage Ground. 11 BSTR+ AIN Bootstrap Input, Right Channel Noninverting. 12 OUTR+ AOUT Right Channel Noninverting Output. 13 OUTR+ AOUT Right Channel Noninverting Output. 14 PVDD PWR Right Channel Power Stage Supply. 15 PVDD PWR Right Channel Power Stage Supply. 16 PVDD PWR Right Channel Power Stage Supply. 17 PVDD PWR Right Channel Power Stage Supply. 18 OUTR− AOUT Right Channel Inverting Output. 19 OUTR− AOUT Right Channel Inverting Output. 20 BSTR− AIN Bootstrap Input, Right Channel Inverting. 21 PGND PWR Right Channel Power Stage Ground. 22 PGND PWR Right Channel Power Stage Ground. 23 DVDD_EN AIN 1.8 V DVDD Regulator Enable. Connect this pin to AVDD to enable the DVDD regulator or connect to AGND to disable the regulator. When this pin is connected to AVDD, the regulator is enabled. When this pin is connected to AGND, the regulator is disabled. 24 AVDD PWR Analog Supply 5 V Regulator Output/External 5 V Input. 25 AGND PWR Analog Ground. 26 ADDR0 AIN Address Select 0 (See Table 14). 27 ADDR1 AIN Address Select 1 (See Table 14). |
|
