SSM3582A
Data Sheet
Rev. A | Page 16 of 58
0.001
1.000
0.002
0.005
0.010
0.020
0.050
0.100
0.200
0.500
20
20k
50
100
200
500
FREQUENCY (Hz)
1k
2k
5k
10k
RL = 8Ω
PVDD = 12V
5W
1W
100mW

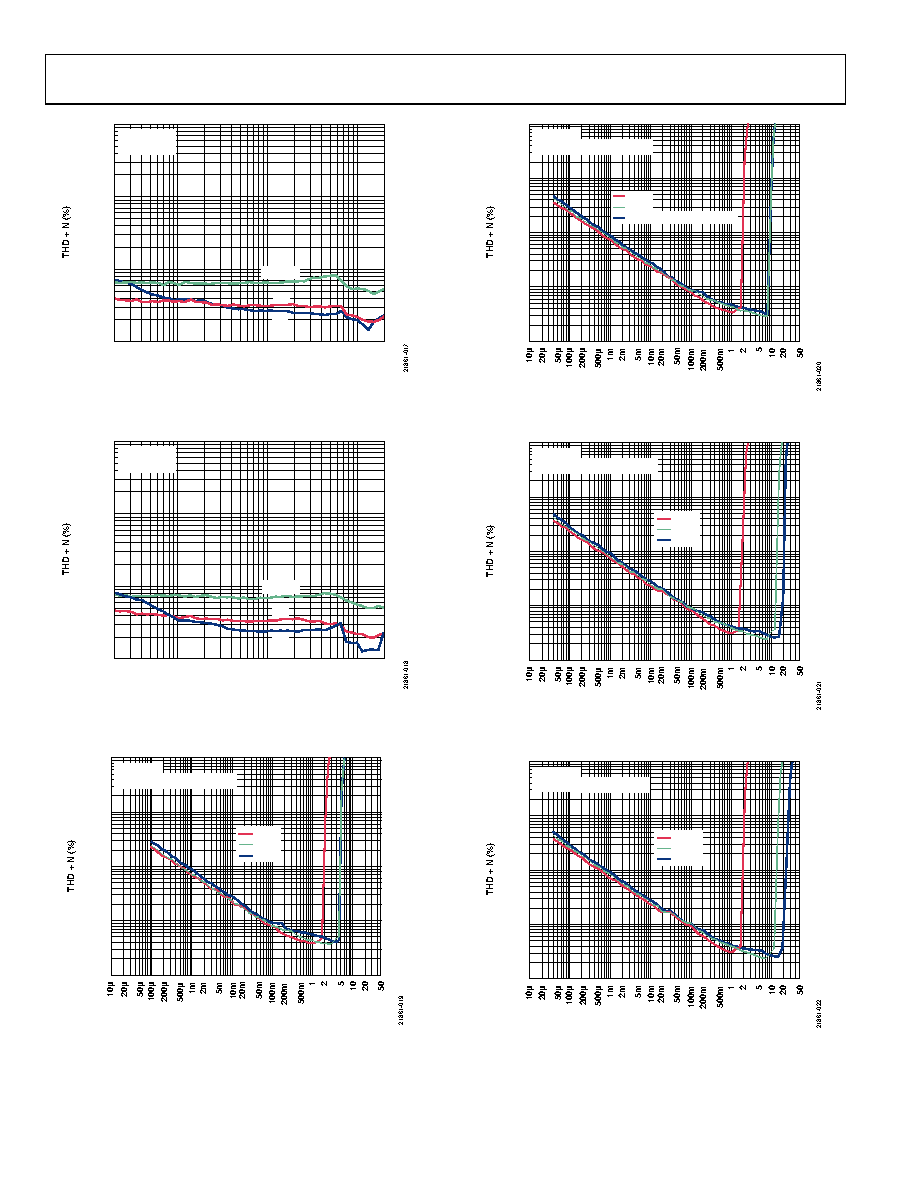

Figure 19. THD + N vs. Frequency, RL = 8 Ω, PVDD = 12 V
0.001
1.000
0.002
0.005
0.010
0.020
0.050
0.100
0.200
0.500
20
20k
50
100
200
500
FREQUENCY (Hz)
1k
2k
5k
10k
RL = 8Ω
PVDD = 16V
5W
1W
100mW
Figure 20. THD + N vs. Frequency, RL = 8 Ω, PVDD = 16 V
0.001
10
0.002
0.005
0.010
0.020
0.050
0.100
0.200
0.500
1.000
2
5
POWER (W)
4.5V
7.0V
16.0V
RL = 4Ω
ANALOG GAIN = 6.3V peak
Figure 21. THD + N vs. Power, RL = 4 Ω, Analog Gain = 6.3 V peak
0.001
10
0.002
0.005
0.010
0.020
0.050
0.100
0.200
0.500
1.000
2
5
POWER (W)
RL = 4Ω
ANALOG GAIN = 8.9V peak
4.5V
12.0V
16.0V (3dB GAIN ADDED)
Figure 22. THD + N vs. Power, RL = 4 Ω, Analog Gain = 8.9 V peak
0.001
10
0.002
0.005
0.010
0.020
0.050
0.100
0.200
0.500
1.000
2
5
POWER (W)
4.5V
12.0V
16.0V
RL = 4Ω
ANALOG GAIN = 12.6V peak
Figure 23. THD + N vs. Power, RL = 4 Ω, Analog Gain = 12.6 V peak
0.001
10
0.002
0.005
0.010
0.020
0.050
0.100
0.200
0.500
1.000
2
5
POWER (W)
4.5V
12.0V
16.0V
RL = 4Ω
ANALOG GAIN = 16V peak
Figure 24. THD + N vs. Power, RL = 4 Ω, Analog Gain = 16 V peak
