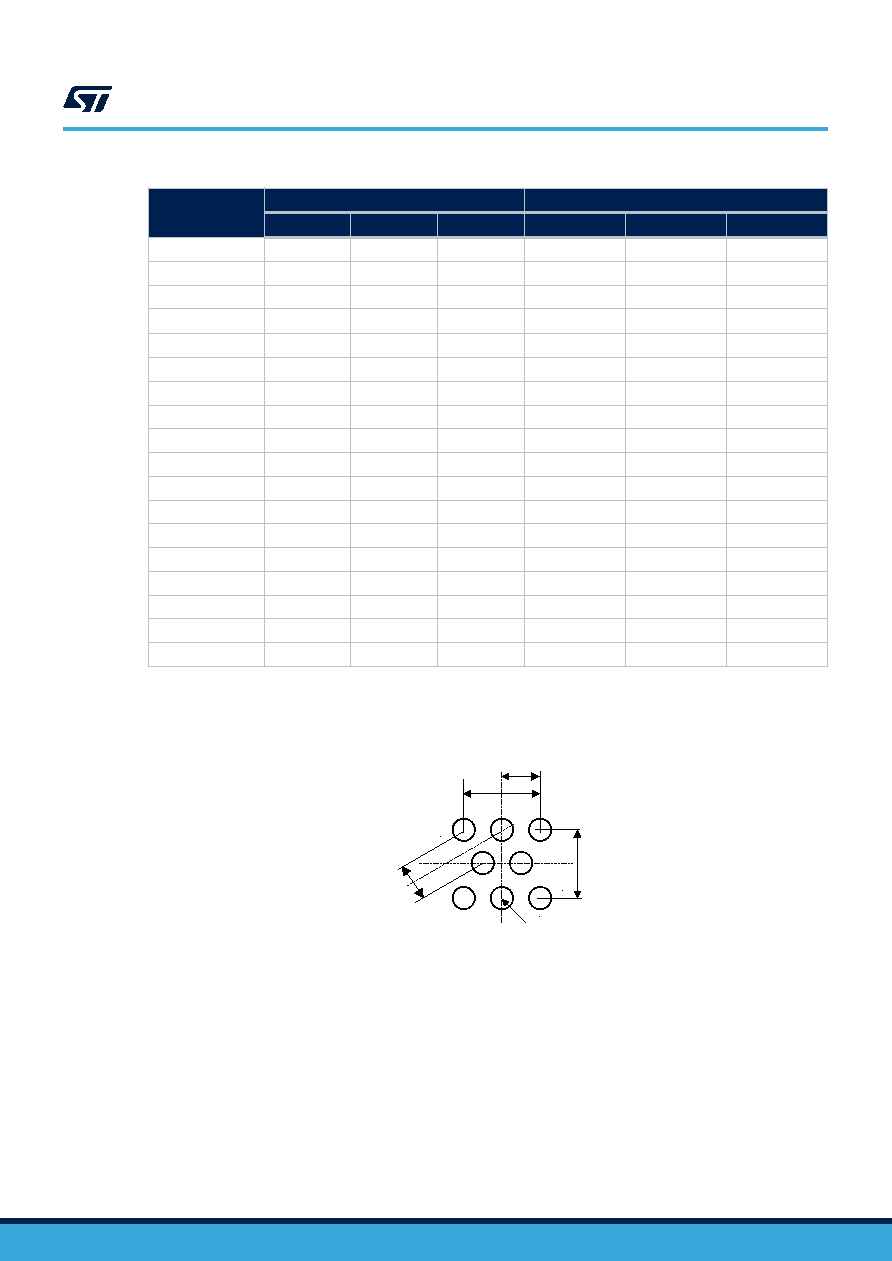

Table 23. WLCSP8 - Mechanical data
Symbol
millimeters
inches(1)
Min
Typ
Max
Min
Typ
Max
A
0.500
0.540
0.580
0.0197
0.0213
0.0228
A1
-
0.190
-
-
0.0075
-
A2
-
0.350
-
-
0.0138
-
b(2)
-
0.270
-
-
0.0106
-
D
-
1.289
1.309
-
0.0507
0.0515
E
-
1.376
1.396
-
0.0542
0.0550
e
-
0.800
-
-
0.0315
-
e1
-
0.693
-
-
0.0273
-
e2
-
0.400
-
-
0.0157
-
e3
-
0.400
-
-
0.0157
-
F
-
0.342
-
-
0.0135
-
G
-
0.245
-
-
0.0096
-
H
-
0.245
-
-
0.0096
-
aaa
-
0.110
-
-
0.0043
-
bbb
-
0.110
-
-
0.0043
-
ccc
-
0.110
-
-
0.0043
-
ddd
-
0.060
-
-
0.0024
-
eee
-
0.060
-
-
0.0024
-
1. Values in inches are converted from mm and rounded to four decimal digits.
2. Dimension is measured at the maximum bump diameter parallel to primary datum Z.
Figure 30. WLCSP8 - Recommended footprint
0.693
0.400
0.800
0.400
8 bumps x Ø 0.270
1.
Dimensions are expressed in millimeters.
M95256-W M95256-R M95256-DF
WLCSP8 (CS) package information
DS4712 - Rev 22
page 41/51
