Data Sheet

ADL8106

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. B | 12 of 26

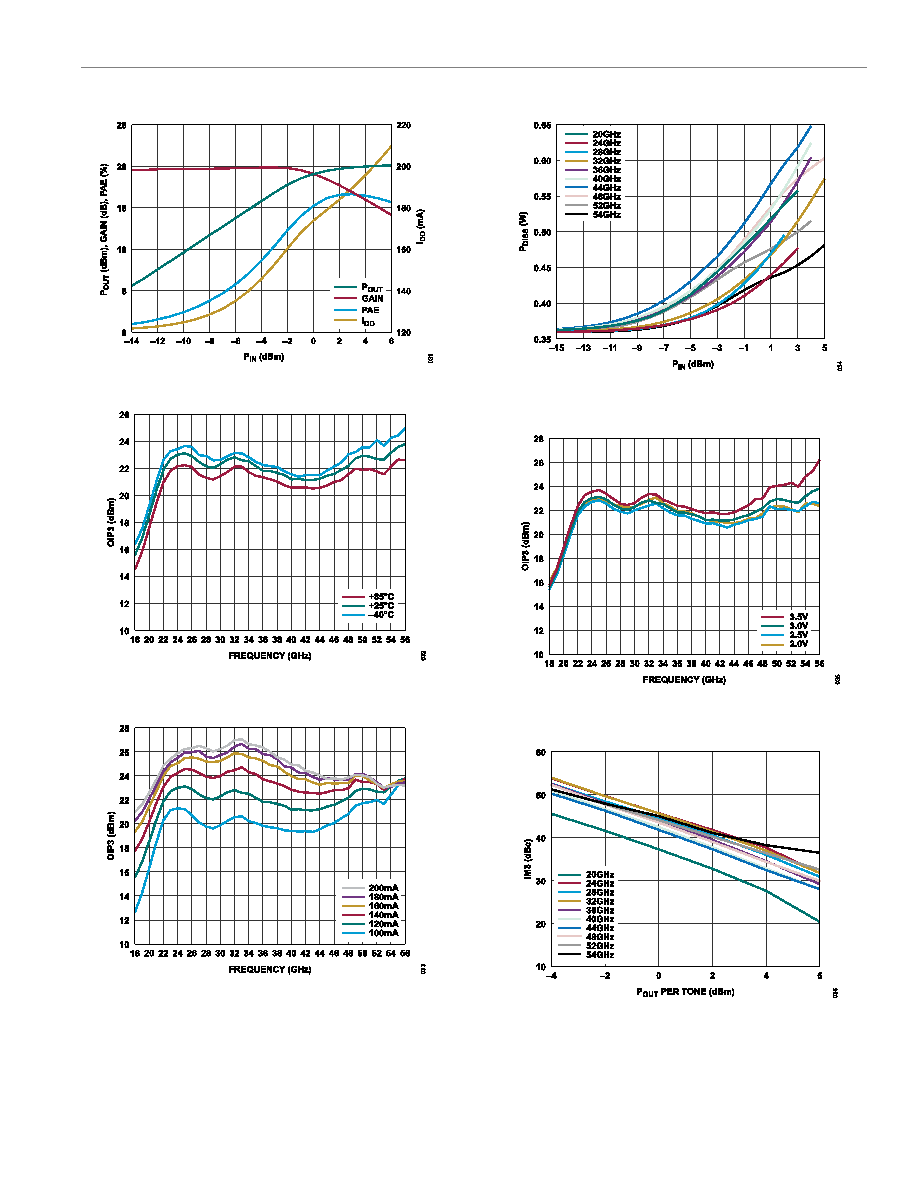

Figure 31. POUT, Gain, PAE, and IDD vs. PIN, 54 GHz, VDD = 3 V, IDQ = 120 mA

Figure 32. OIP3 vs. Frequency for Various Temperatures,

POUT per Tone = 0 dBm, VDD = 3 V, IDQ = 120 mA

Figure 33. OIP3 vs. Frequency for Various IDQ Values, POUT per Tone = 0 dBm,

VDD = 3 V

Figure 34. PDISS vs. PIN for Various Frequencies at TCASE = 85°C, VDD = 3 V,

IDQ = 120 mA

Figure 35. OIP3 vs. Frequency for VDD Values, POUT per Tone = 0 dBm,

IDQ = 120 mA

Figure 36. Third-Order Intermodulation Distortion (IM3) vs. POUT per Tone for

Various Frequencies, VDD = 2 V, IDQ = 120 mA
