ADL8106ACEZ-R7 Scheda tecnica(PDF) 13 Page - Analog Devices

Il numero della parte ADL8106ACEZ-R7
Spiegazioni elettronici  GaAs, pHEMT, Low Noise Amplifier, 18 GHz to 54 GHz
PDF  26 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Produttore elettronici  AD [Analog Devices]
Homepage  http://www.analog.com
Logo AD - Analog Devices

ADL8106ACEZ-R7 Scheda tecnica(HTML) 13 Page - Analog Devices

Back Button ADL8106ACEZ-R7 Datasheet HTML 9Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 10Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 11Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 12Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 13Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 14Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 15Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 16Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 17Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 26 page
background image
Data Sheet
ADL8106
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 13 of 26

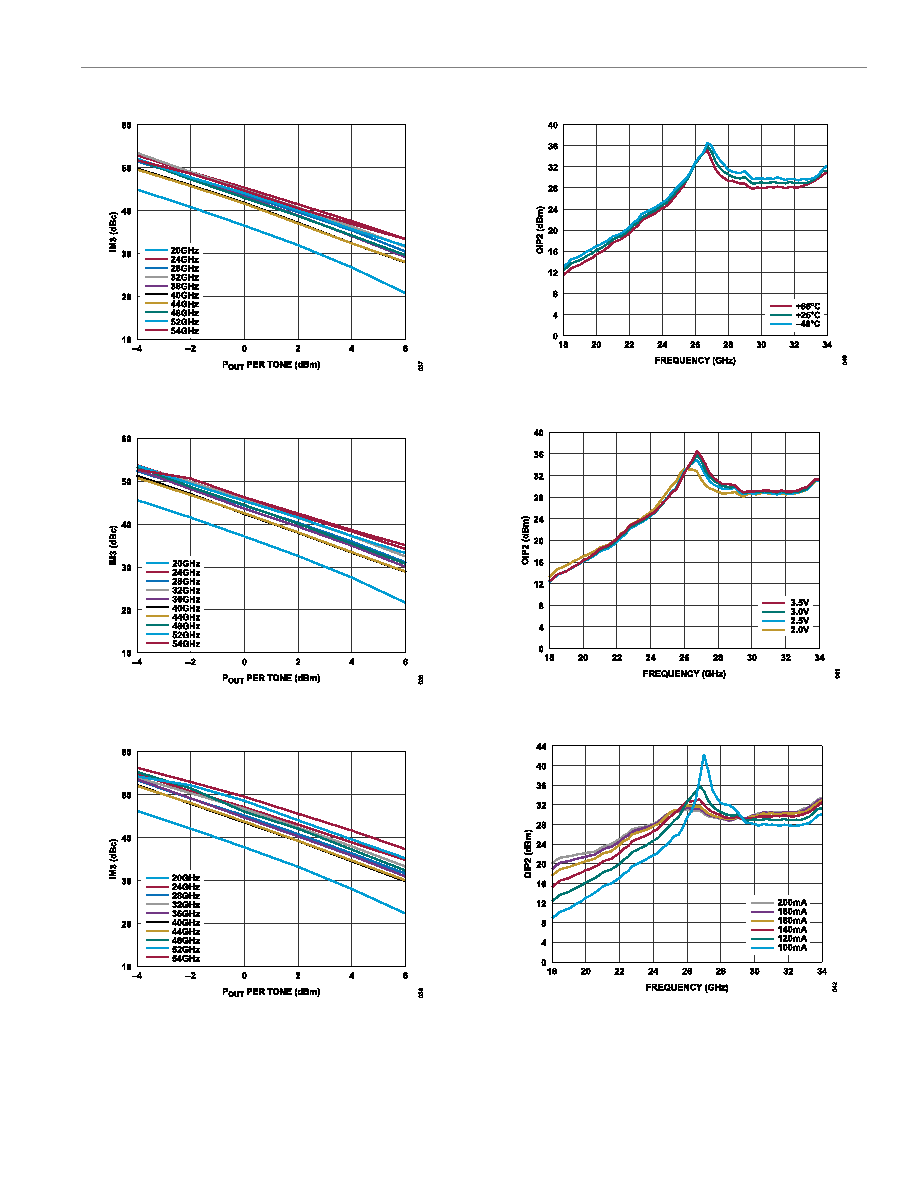

Figure 37. IM3 vs. POUT per Tone for Various Frequencies, VDD = 2.5 V,
IDQ = 120 mA
Figure 38. IM3 vs. POUT per Tone for Various Frequencies, VDD = 3 V,
IDQ = 120 mA
Figure 39. IM3 vs. POUT per Tone for Various Frequencies, VDD = 3.5 V,
IDQ = 120 mA
Figure 40. OIP2 vs. Frequency for Various Temperature,
POUT per Tone = 0 dBm, VDD = 3 V, IDQ = 120 mA
Figure 41. OIP2 vs. Frequency for Various VDD Values,
POUT per Tone = 0 dBm, IDQ = 120 mA
Figure 42. OIP2 vs. Frequency for Various IDQ Values, POUT per Tone = 0 dBm,
VDD = 3 V
