ADL8106ACEZ-R7 Scheda tecnica(PDF) 16 Page - Analog Devices

Il numero della parte ADL8106ACEZ-R7
Spiegazioni elettronici  GaAs, pHEMT, Low Noise Amplifier, 18 GHz to 54 GHz
PDF  26 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Produttore elettronici  AD [Analog Devices]
Homepage  http://www.analog.com
Logo AD - Analog Devices

ADL8106ACEZ-R7 Scheda tecnica(HTML) 16 Page - Analog Devices

Back Button ADL8106ACEZ-R7 Datasheet HTML 12Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 13Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 14Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 15Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 16Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 17Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 18Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 19Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 20Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 16 / 26 page
background image
Data Sheet
ADL8106
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 16 of 26

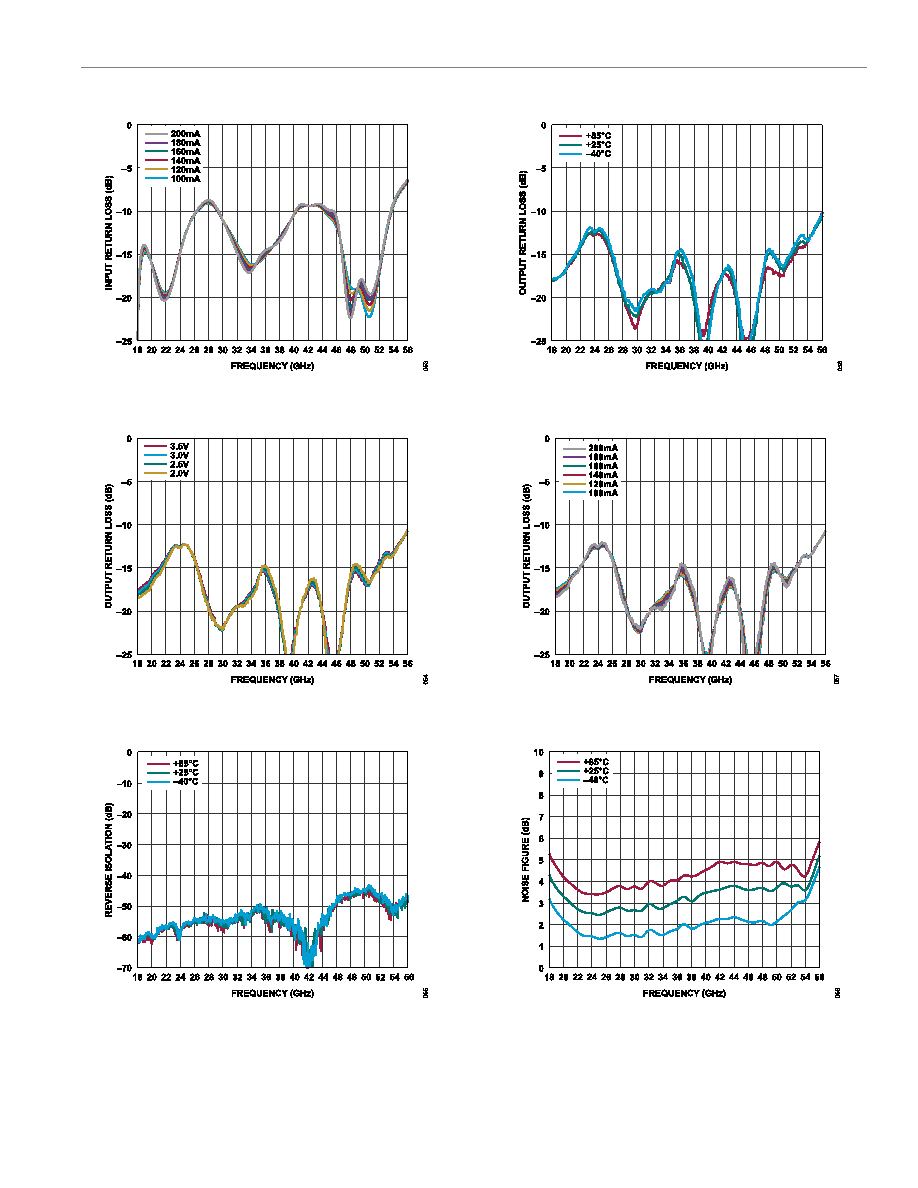

Figure 53. Input Return Loss vs. Frequency for Various IDQ Values,
VDD = 2.5 V
Figure 54. Output Return Loss vs. Frequency for Various VDD Values,
IDQ = 160 mA
Figure 55. Reverse Isolation vs. Frequency for Various Temperatures,
VDD = 2.5 V, IDQ = 160 mA
Figure 56. Output Return Loss vs. Frequency for Various Temperatures,
VDD = 2.5 V, IDQ = 160 mA
Figure 57. Output Return Loss vs. Frequency for Various IDQ Values,
VDD = 2.5 V
Figure 58. Noise Figure vs. Frequency for Various Temperatures, VDD = 2.5 V,
IDQ = 160 mA
