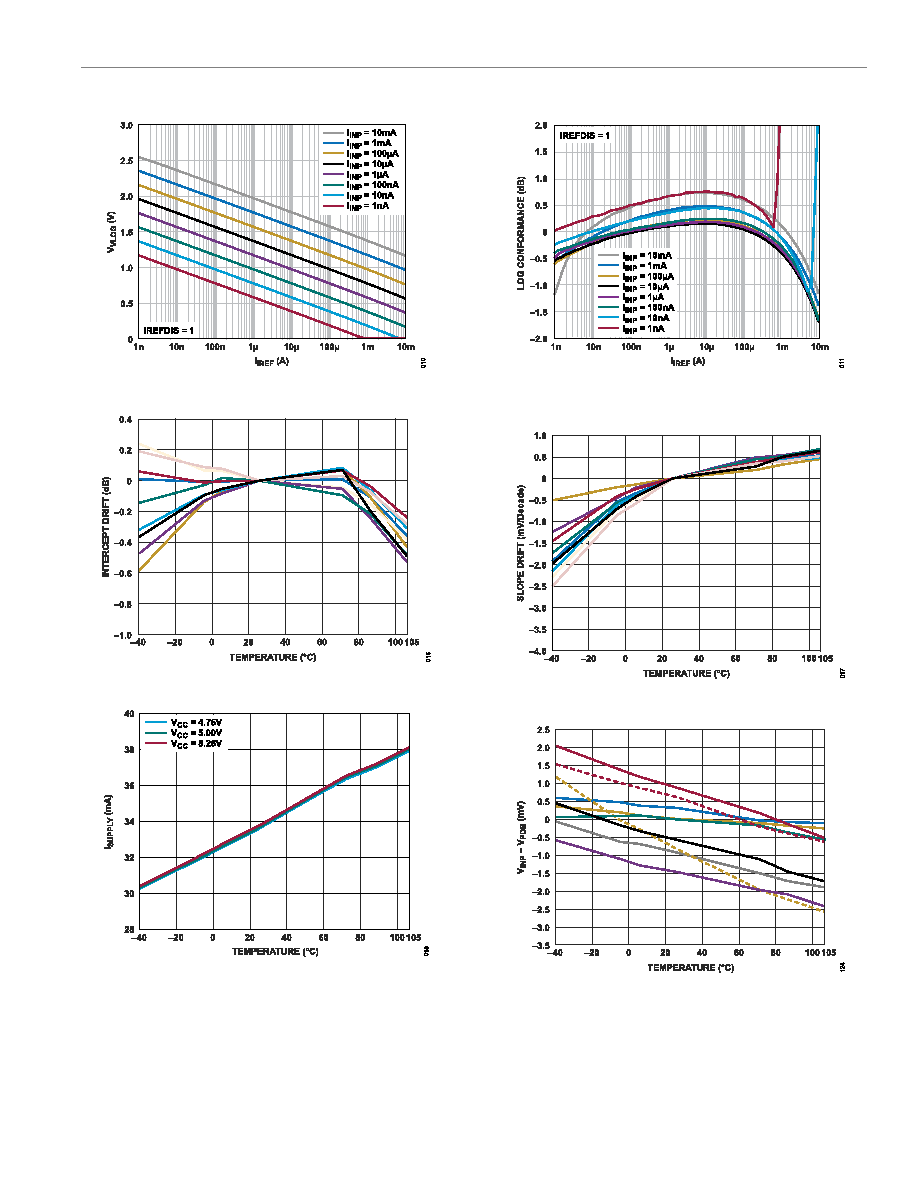

background image
Data Sheet
ADL5308
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 8 of 22
Figure 10. VVLOG vs. IIREF at Various IINP Values in Decade Steps
Figure 11. VVLOG − 1.1 V Intercept Drift vs. Temperature Over 10 Samples
Figure 12. Supply Current vs. Temperature at Various VCC Values for IINP = 10
nA
Figure 13. Log Conformance Error vs. IIREF at Various IINP Value in Decade
Steps
Figure 14. Slope Drift vs. Temperature Over 10 Samples
Figure 15. Offset Voltage at 10 nA vs. Temperature Over 10 Samples
