overshoot

undershoot

period

Overshoot = 20% of nominal

IO supply voltage

Undershoot = 20% of nominal

IO supply voltage

Tovershoot + Tundershoot < 20% of Tperiod

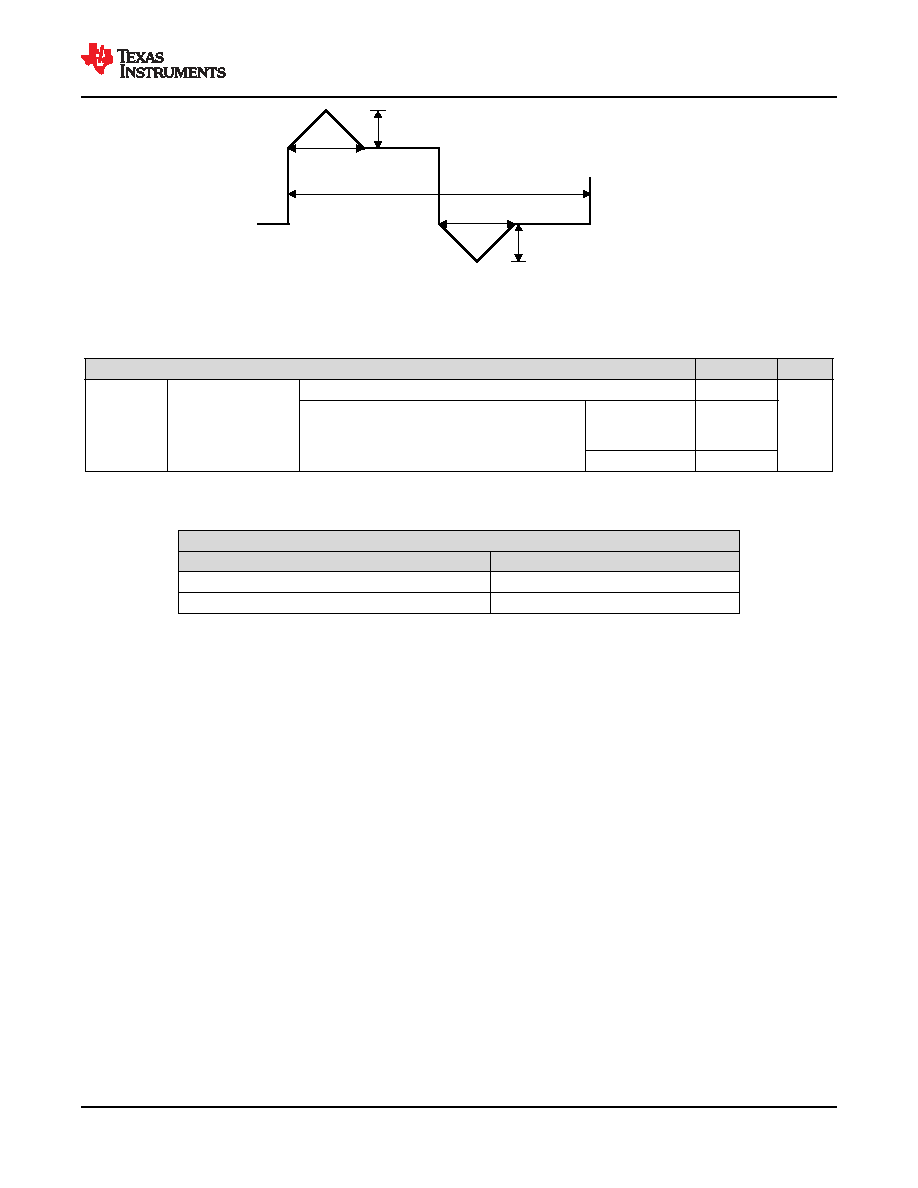

Figure 6-1. IO Transient Voltage Ranges

6.2 ESD Ratings for AEC - Q100 Qualified Devices in the AMW Package

VALUE

UNIT

V(ESD)

Electrostatic discharge

Human-body model (HBM), per AEC - Q100-002(1)

±1000

Charged-device model (CDM), per AEC - Q100-011

Corner pins

(A1, A25, AE1, and

AE25)

±750

All other pins

±250

(1)

AEC - Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

6.3 Power-On Hours (POH)

POWER ON HOURS (POH)(1) (2) (3)

JUNCTION TEMPERATURE RANGE (TJ)(4)

LIFETIME (POH)

–40°C to 105°C

100000

–40°C to 125°C

20000(5)

(1)

This information is provided solely for your convenience and does not extend or modify the

warranty provided under TI's standard terms and conditions for TI semiconductor products.

(2)

Unless specified in the table above, all voltage domains and operating conditions are supported in

the device at the noted temperatures.

(3)

POH is a function of voltage, temperature and time. Usage at higher voltages and temperatures will

result in a reduction in POH.

(4)

Either –40 to 105C or –40 to 125C profile should be chosen and applied through the lifetime of

the application. Mixing of these profiles for the purposes of extending temperature and/or POH may

result in increased reliability failure risk and is not recommended.

(5)

The –40 to 125C profile is defined as 20000 power on hours with a junction temperature as follows:

5%@–40°C, 65%@70°C, 20%@110°C, and 10%@125°C.

www.ti.com

TDA4VEN-Q1, TDA4AEN-Q1

SPRSP96A – MARCH 2024 – REVISED SEPTEMBER 2024

Submit Document Feedback

Product Folder Links: TDA4VEN-Q1 TDA4AEN-Q1
