6.9.3.2 Error Signal Timing

Tables and figures provided in this section define timing conditions and switching characteristics for

MCU_ERRORn.

Table 6-16. Error Signal Timing Conditions

PARAMETER

MIN

MAX

UNIT

OUTPUT CONDITIONS

Output load capacitance

30 pF

Table 6-17. MCU_ERRORn Switching Characteristics

see Figure 6-13

NO.

PARAMETER

MIN

MAX UNIT

ERR1 tc(MCU_ERRORn)

Cycle time minimum, MCU_ERRORn (PWM

mode enabled)

(P*H)+(P*L)(1) (3) (4)

ERR2 tw(MCU_ERRORn)

Pulse width minimum, MCU_ERRORn active

(PWM mode disabled)(5)

P*R(1) (2)

ERR3

td (ERROR_CONDITION-

MCU_ERRORnL)

Delay time, ERROR CONDITION to

MCU_ERRORn active(5)

50*P(1)

(1)

P = ESM functional clock period in ns.

(2)

R = Error Pin Counter Pre-Load Register count value.

(3)

H = Error Pin PWM High Pre-Load Register count value.

(4)

L = Error Pin PWM Low Pre-Load Register count value.

(5)

When PWM mode is enabled, MCU_ERRORn stops toggling after ERR3 and will maintain its value (either high or low) until the error is

cleared. When PWM mode is disabled, MCU_ERRORn is active low.

MCU_ERRORn

(PWM Mode Enabled)

MCU_ERRORn

(PWM Mode Disabled)

ERR1

ERR2

ERR3

Internal Error Condition

(Active High)

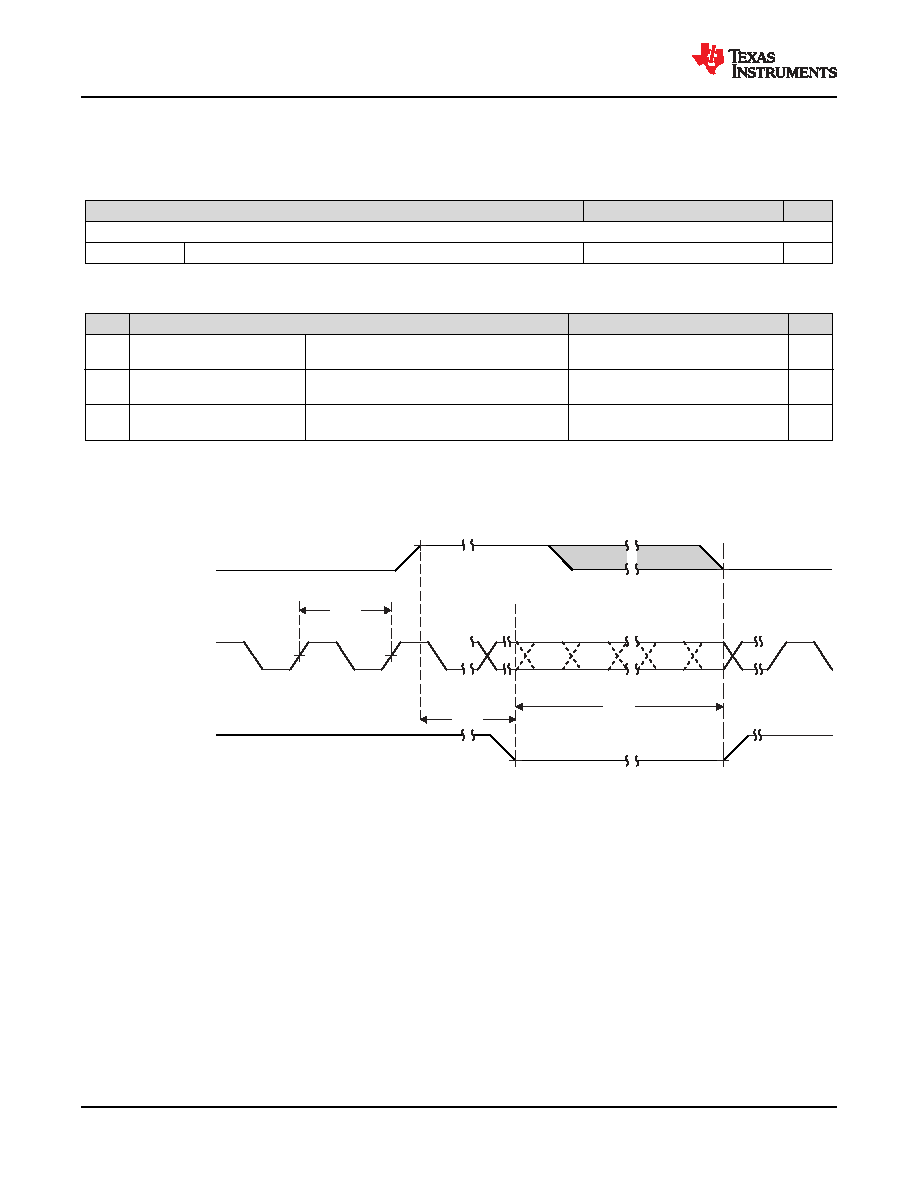

Figure 6-13. MCU_ERRORn Timing Requirements and Switching Characteristics

TDA4VEN-Q1, TDA4AEN-Q1

SPRSP96A – MARCH 2024 – REVISED SEPTEMBER 2024

www.ti.com

108

Submit Document Feedback

Product Folder Links: TDA4VEN-Q1 TDA4AEN-Q1
