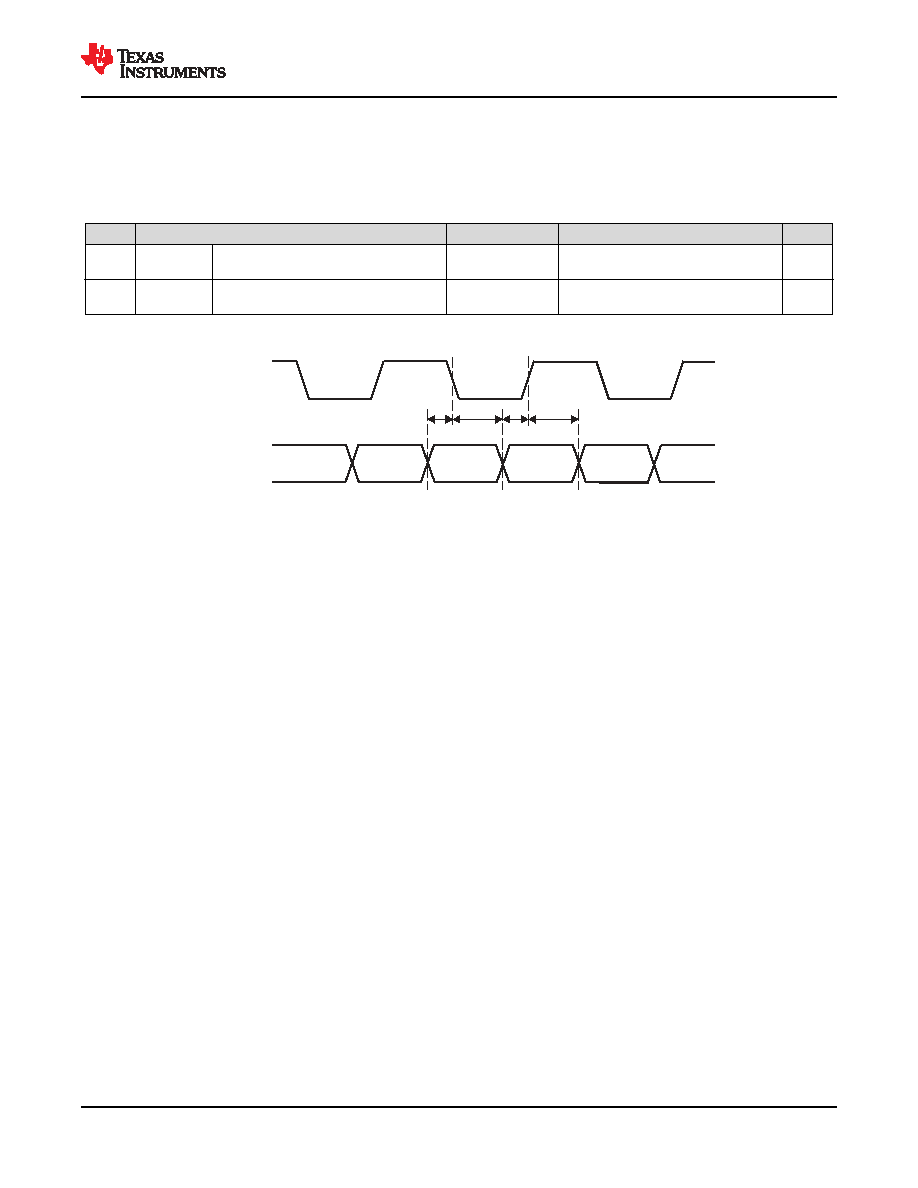

6.9.5.19.2.2 OSPI0 Tap DDR Timing
Table 6-124, Figure 6-106, Table 6-125, and Figure 6-107 present timing requirements and switching
characteristics for OSPI0 Tap DDR Mode.
Table 6-124. OSPI0 Timing Requirements – Tap DDR Mode
see Figure 6-106
NO.
MODE
MIN
MAX
UNIT
O13
tsu(D-CLK)
Setup time, OSPI0_D[7:0] valid before
active OSPI0_CLK edge
No Loopback
(17.04 -
(0.975T(1)R(2)))
ns
O14
th(CLK-D)
Hold time, OSPI0_D[7:0] valid after active
OSPI0_CLK edge
No Loopback
(- 3.16 +
(0.975T(1)R(2)))
ns
(1)
T = OSPI_RD_DATA_CAPTURE_REG[DELAY_FLD]
(2)
R = reference clock cycle time in ns
OSPI_CLK
O14
O13
OSPI_TIMING_03
OSPI_D[i:0]
O14
O13
Figure 6-106. OSPI0 Timing Requirements – Tap DDR, No Loopback
www.ti.com
TDA4VEN-Q1, TDA4AEN-Q1
SPRSP96A – MARCH 2024 – REVISED SEPTEMBER 2024
Copyright © 2024 Texas Instruments Incorporated
Submit Document Feedback
209
Product Folder Links: TDA4VEN-Q1 TDA4AEN-Q1
