Accurately Measure

and Visualize Ultra-Low

Current Drain Levels

Determine the current drain of

the components such as the

microcontroller (MCU) in your low-

power, battery-operated product as

well as the product’s total current

draw. In addition, profile the current

drain in all of the product’s operating

states from its sleep mode to its

transmit mode. Using the enhanced

accuracy DC current function, the

DMM7510 can measure a 1 µA sleep

mode current with 1 pA resolution

and with 0.375 nA tolerance.

Furthermore, using the digitizing

current function, the DMM7510 can

capture the current wave shapes as

the product transitions from sleep

mode to transmit mode.

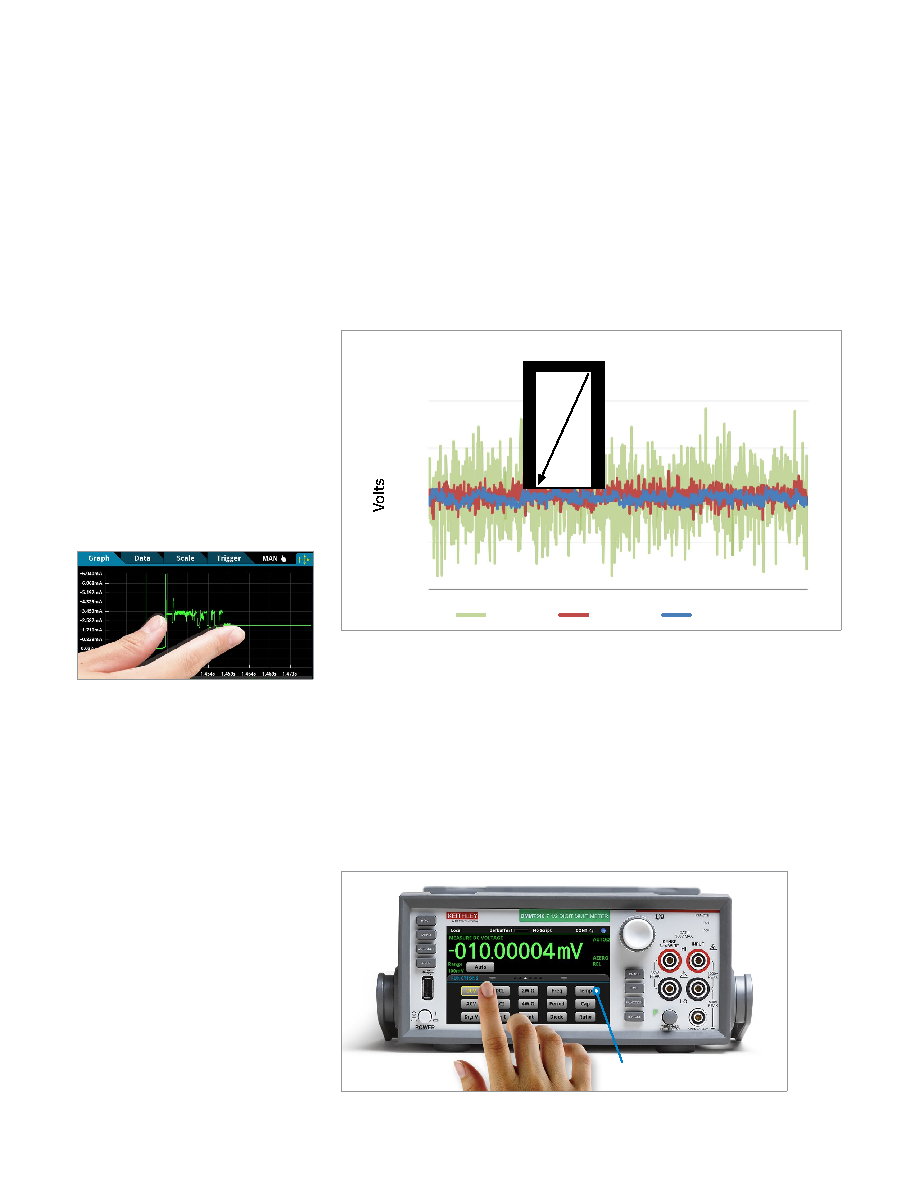

Capture the current drain from all the operating

states – sleep mode to active transmit mode – of

a component or a product with the DMM7510’s

digitizing function. Focus in on characteristics of

the wave shapes with the touchscreen pinch and

zoom features.

Make Demanding Measurements

with Confidence

The DMM7510’s design makes the most of Keithley’s low level measurement

expertise. Features like the low noise input stage and the 32-bit A-to-D converter

allow this instrument to deliver DC accuracies typically only found in metrology-

grade instrumentation—but at about half the price of those solutions. The

DMM7510’s 100 mV, 10

Ω, and 10 µA ranges deliver the sensitivity needed to

measure low signals with confidence when characterizing today’s demanding

electronic designs. In addition to one- and two-year accuracy specifications, an

auto-calibration function ensures greater accuracy between calibration cycles.

2µV

1µV

0µV

–1µV

–2µV

6½ Digit

8½ Digit

DMM7510

One Power Line Cycle

Noise Performance

The DMM7510 provides noise performance equivalent to

or better than many 8½-digit DMMs.

Comparison of the DMM7510’s 1 VDC noise performance with that of typical 6½- and 8½-digit

multimeters. All data was taken at 1 NPLC with a low thermal short applied to the input.

15 Measurement Functions

The DMM7510 provides 15 basic measurement functions. In addition to the

digitizing voltage and current functions, it includes capacitance, ACV and ACI,

temperature (RTD, thermistor, and thermocouple), 2- and 4-wire resistance,

dry circuit ohms, period, frequency, diode test, and DC voltage ratio. The

instrument’s flat menu structure allows for fast configuration and improves

usability. Its intuitive design lets you to learn how to operate the instrument and

begin making device measurements faster and with greater confidence.

RTD, Thermistor, Thermocouple
