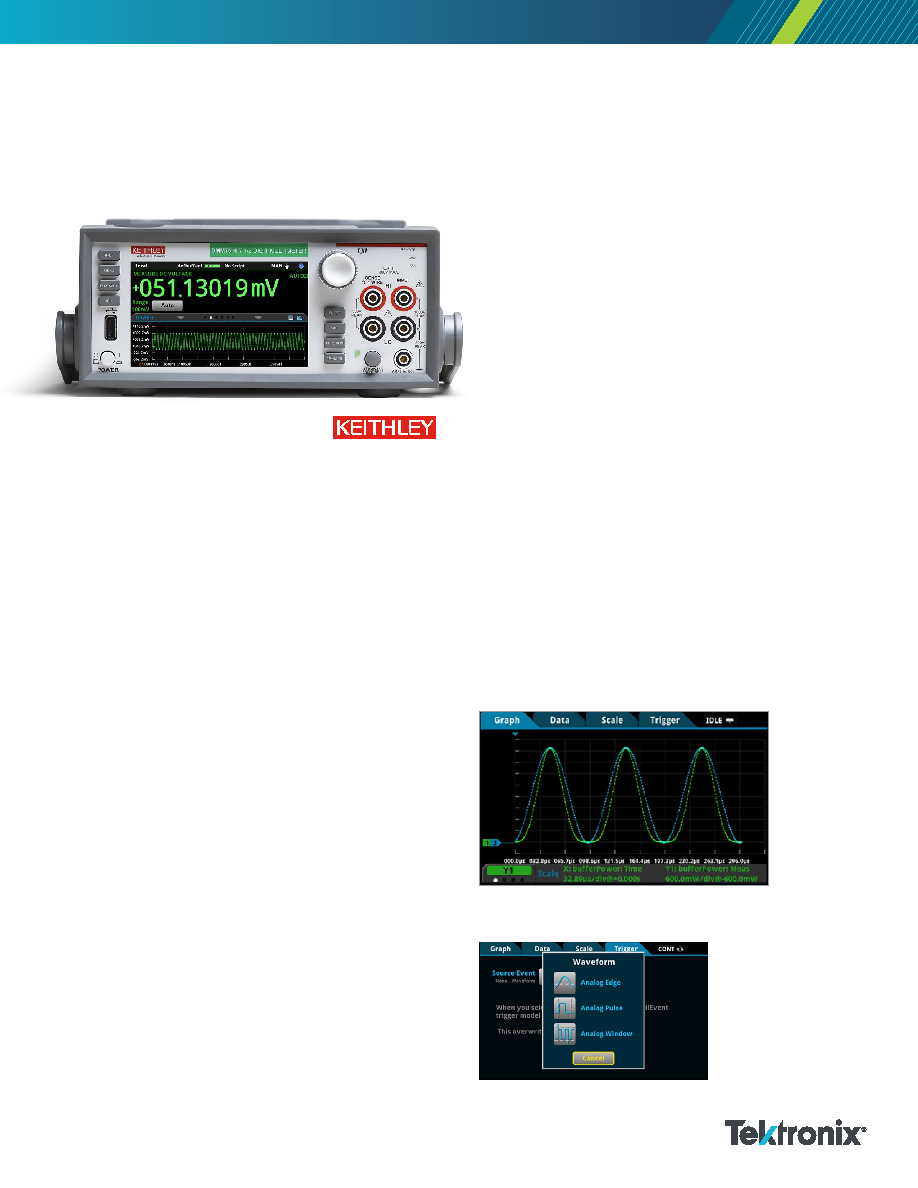

1 / 27 page  Key Features • Precision multimeter with 3½- to 7½-digit resolution • Capture and display waveforms or transients with 1 MS/sec digitizer • Large internal memory buffer; store over 11 million readings in standard mode or 27.5 million in compact mode • 14 PPM basic one-year DCV accuracy • 100 mV, 1 Ω, and 10 µA ranges offer the sensitivity needed for measuring low level signals such as portable device sleep mode currents • Make accurate low resistance measurements with offset compensated ohms, four-wire, and dry circuit functions • Auto-calibration feature improves accuracy and stability by minimizing temperature and time drift • Display more with five-inch, high resolution touchscreen interface • Readings and screen images can be saved quickly via the front panel USB memory port • Multiple connectivity options: GPIB, USB, and LXI- compliant LAN interfaces • Two-year specifications enable longer calibration cycles The DMM7510 combines all the advantages of a precision digital multimeter, a graphical touchscreen display, and a high speed, high resolution digitizer to create an industry first: a graphical sampling multimeter. The digitizer gives the DMM7510 unprecedented signal analysis flexibility; the five-inch capacitive touchscreen display makes it easy to observe, interact with, and explore measurements with “pinch and zoom” simplicity. This combination of high performance and high ease of use offers unparalleled insight into your test results. Capture Waveforms with the Built-in 1 MS/sec Digitizer Capturing and displaying waveforms and transient events just got easier with the DMM7510’s voltage or current digitizing function. The built-in 1 MS/sec, 18-bit digitizer makes it possible to acquire waveforms without the need to use a separate instrument. The digitizing functions employ the same ranges that the DC voltage and current functions use to deliver exceptional dynamic measurement range. In addition, the voltage digitizing function uses the same DC voltage input impedance (10 G Ω or 10 MΩ) levels to reduce loading significantly on the DUT. DMM 7510 7½-Digit Graphical Sampling Multimeter A Tektronix Company Datasheet Advanced triggering options make it possible to capture a signal at precisely the right point. The built-in graphing utility supports displaying and comparing measurements or waveforms from up to four reading buffers at once. |
