DMM 7510 7½-Digit Graphical Sampling Multimeter

8

10

12

14

16

18

1k

2k

5k

10k

20k

50k

100k

200k

Samples per Second

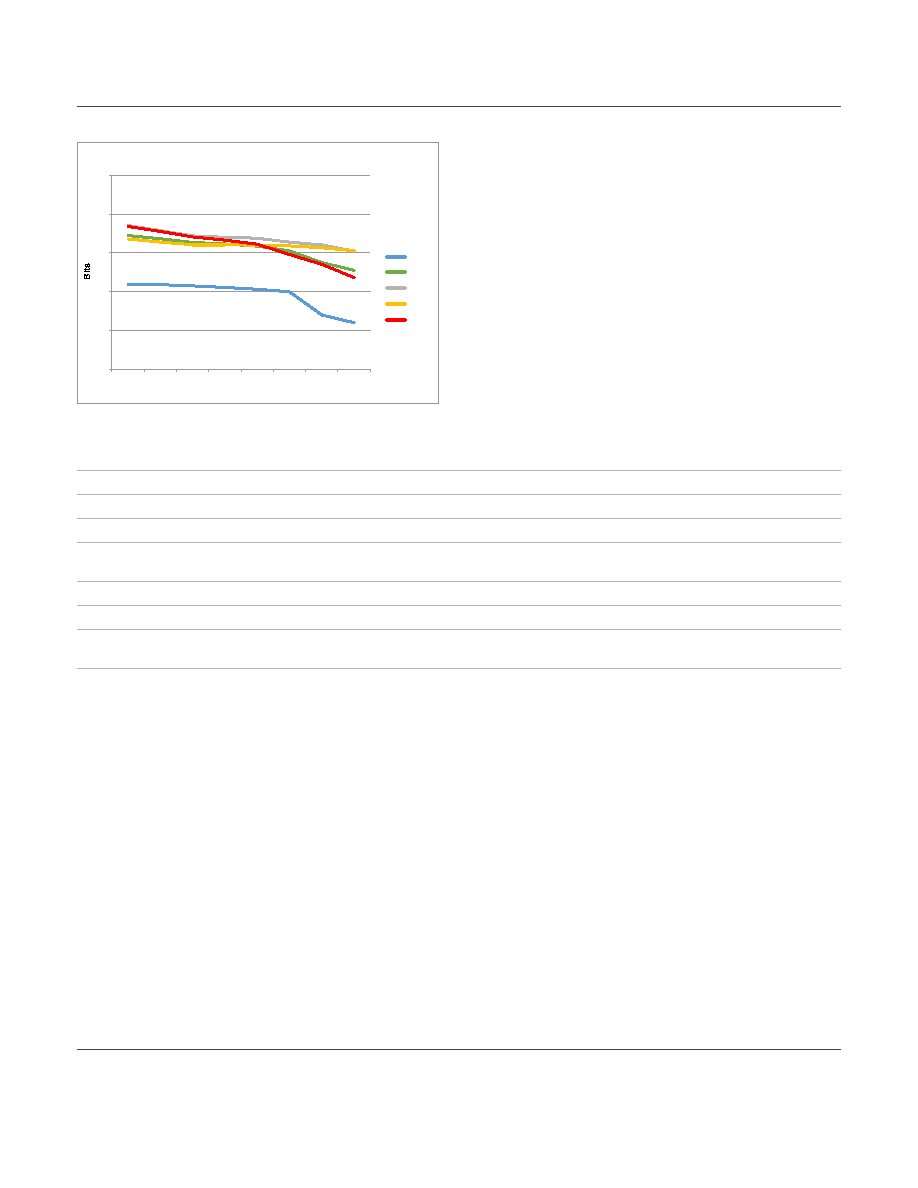

Effective Number of Bits (ENOB), Digitize Current

10uA

100uA

1mA

10mA

100mA

Digitizer Characteristics

Maximum Resolution

18 bits.

Measurement Input Coupling

DC or AC (voltage only).

Programmable 1 k through 1 million.

Volatile Sample Memory with Timestamp

27.5 million.

Minimum Record Time

1 µs.

Timestamp Resolution

1 ns with standard or full buffer style. 1 µs with compact buffer style.

Timestamp Accuracy

With standard or full buffer style, 20 ns between adjacent readings, with total buffer time <2 s.

With compact buffer style, 2 µs adjacent readings, with total buffer buffer time <2 s.

Maximum Record Length

8 million.

NOTES

81. Specified with aperture Auto, 100 Hz sine wave for sample rate

≤5 k, and 1 kHz sine wave for sample rate ≥10 k. For the 1 A, 3 A, and 10 A ranges, use the 100 mA ENOB; guaranteed

by design.

82. Sample rate is not continuously adjustable. For valid discrete settings, see the DMM7510 Reference Manual.
