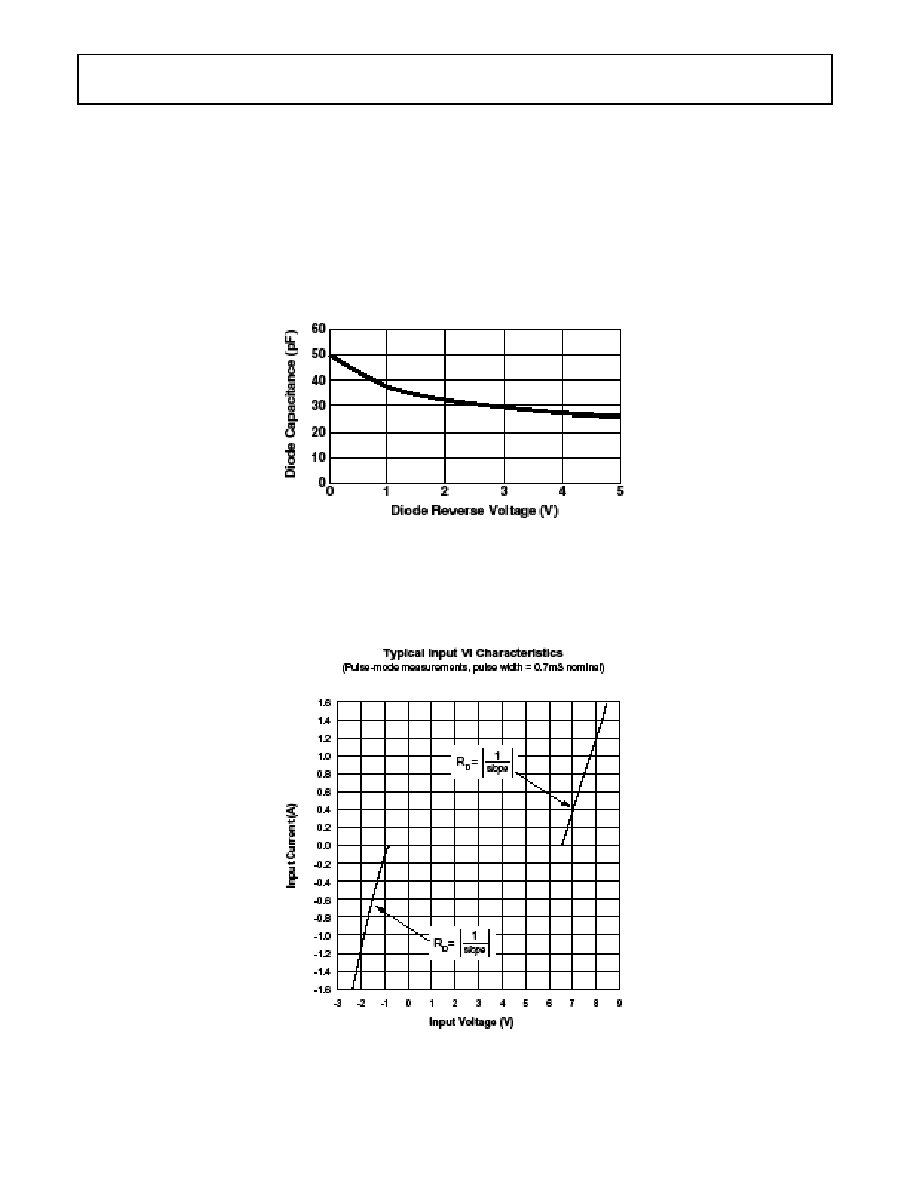

background image
PACDN042/43/44/45/46
Rev. 4 | Page 6 of 24 | www.onsemi.com
Performance Information
Diode Capacitance
Typical diode capacitance with respect to positive TVS cathode voltage (reverse voltage across the diode) is
given in Diode
Capacitance vs. Reverse Voltage .
Figure 1. Diode Capacitance vs. Reverse Voltage
Typical High Current Diode Characteristics
Measurements are made in pulse mode with a nominal pulse width of 0.7mS.
