Mechanical Details (continued)

SC70-6 Mechanical Specifications:

The PACDN045YB6R and PACDN045YB6R-R are supplied in a 6-pin SC70 package. Dimensions are

presented below.

Note:

The PACDN045YB6R-R has a different tape and reel package.

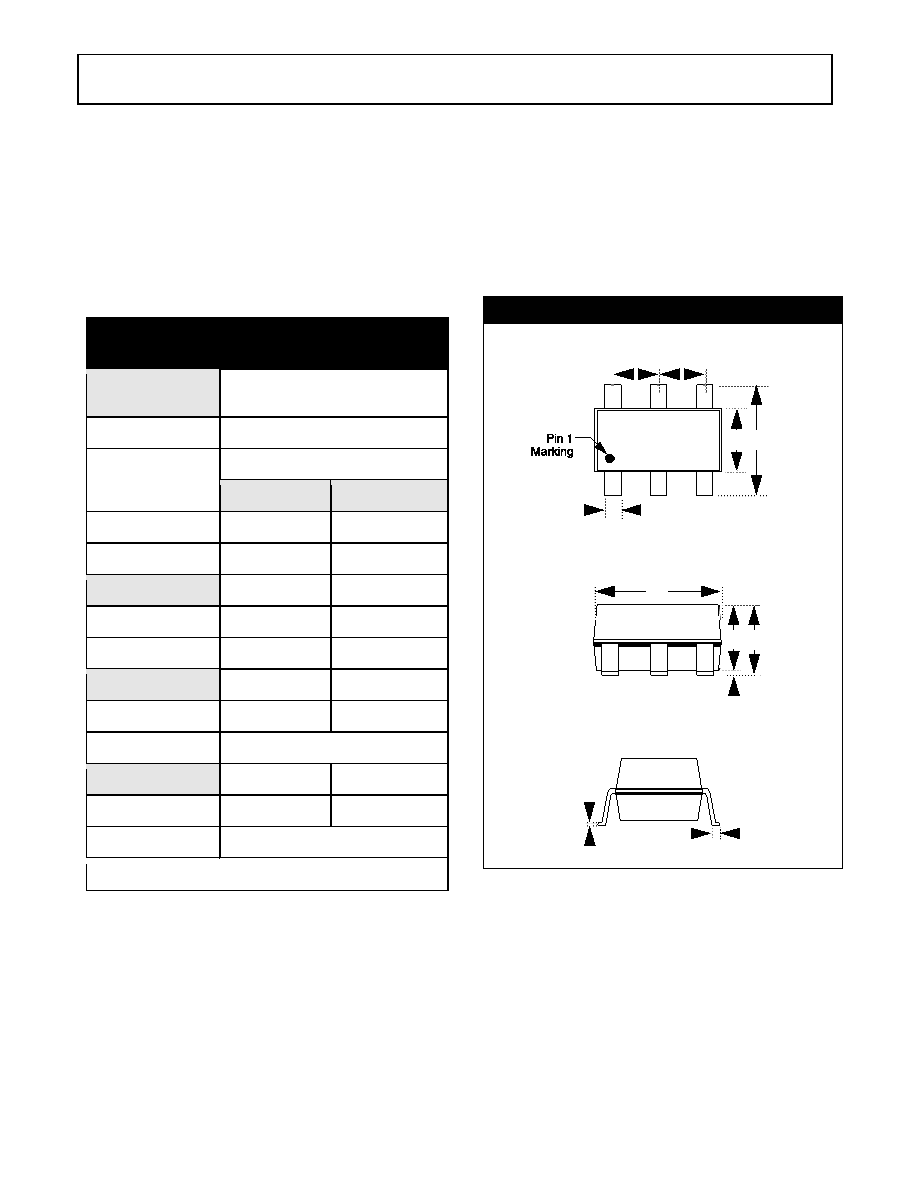

PACKAGE DIMENSIONS

Package

SC70-6

(JEDEC name is MO-203 Issue A)

Pins

6

Millimeters

Dimensions

Min

Max

A

0.80

1.10

A1

0.00

0.10

A2

0.70

1.00

B

0.15

0.30

c

0.08

0.25

D

1.85

2.25

E

1.15

1.35

e

0.65 BSC

HE

2.00

2.40

L

0.26

0.46

# / tape and reel

3000 pieces

Controlling dimension: millimeters

TOP VIEW

12

3

65

4

e

e

B

A

SIDE VIEW

L

END VIEW

D

A2

A1

c

E HE

Package Dimensions for SC70-6.
