PACDN042/43/44/45/46

Rev. 4 | Page 7 of 24 | www.onsemi.com

Mechanical Details

The PACDN042/43/44/45/46 devices are available in the following packages: SOT23-3, SOT23-5, SOT23-6,

SC70-3, SC70-5, SC70-6, SOT143, TSSOP-8, and MSOP-8.

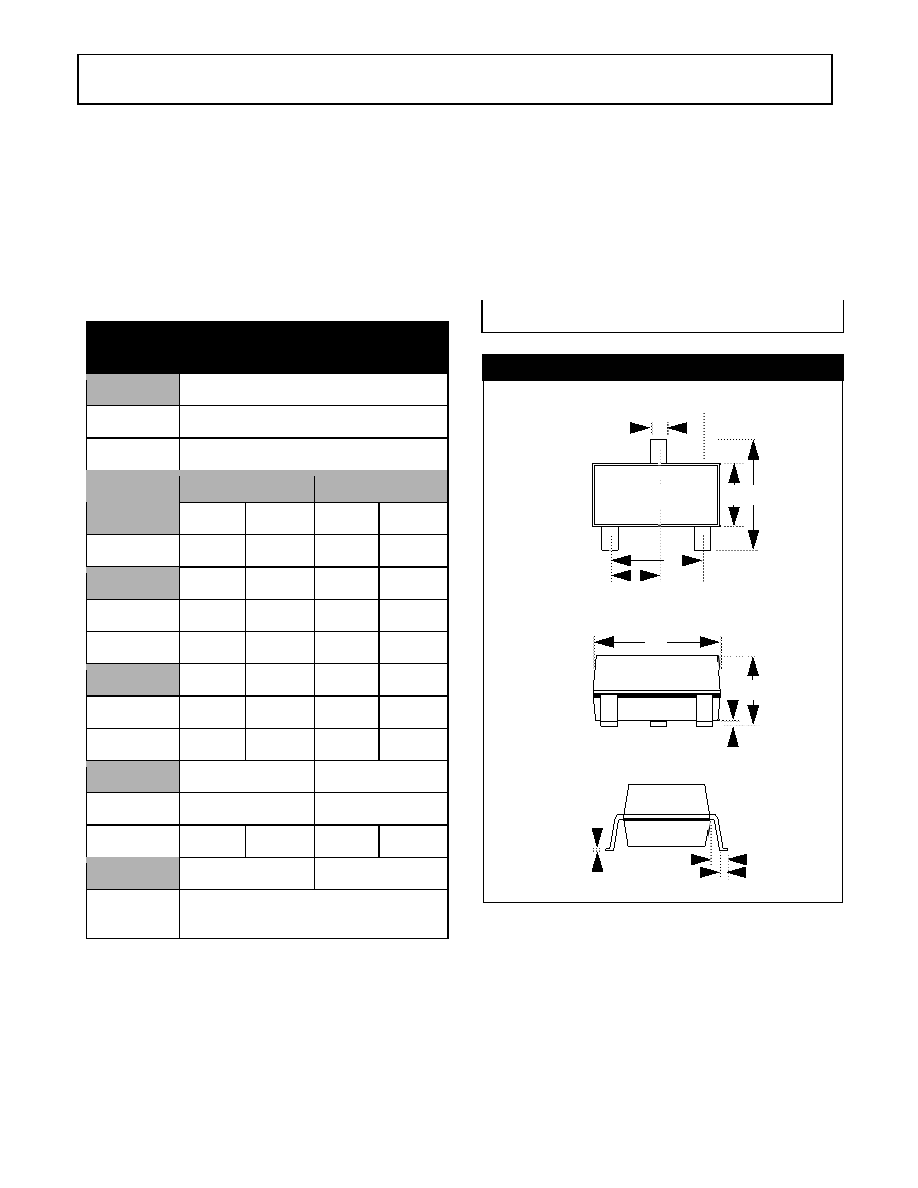

SOT23-3 Mechanical Specifications

The PACDN042Y3R is supplied in a 3-pin SOT23 package. Dimensions are presented below.

PACKAGE DIMENSIONS

Package

SOT23-3 (JEDEC name is TO-236)

JEDEC No.

TO-236 (Var. AB)

Pins/Leads

3

Millimeters

Inches

Dimensions

Min

Max

Min

Max

A

0.89

1.12

0.0350

0.0441

A1

0.01

0.10

0.0004

0.0039

b

0.30

0.50

0.0118

0.0197

c

0.08

0.20

0.0031

0.0079

D

2.80

3.04

0.1102

0.1197

E

2.10

2.64

0.0827

0.1039

E1

1.20

1.40

0.0472

0.0551

e

0.95 BSC

0.0374 BSC

e1

1.90 BSC

0.0748 BSC

L

0.40

0.60

0.0157

0.0236

L1

0.54 REF

0.0213 REF

# per tape

and reel

3000 pieces

Controlling dimension: millimeters

TOP VIEW

e

E1 E

A

SIDE VIEW

L1

END VIEW

D

A1

c

12

e1

b

L

3

Package Dimensions for SOT23-3
