Mechanical Details (continued)

SOT23-5 Mechanical Specifications

The PACDN044Y5R is supplied in a 5-pin SOT23 package. DImensions are presented below.

PACKAGE DIMENSIONS

Package

SOT23-5

JEDEC No.

MO-178 (Var. AA)

Pins/Leads

5

Millimeters

Inches

Dimensions

Min

Max

Min

Max

A

--

1.45

--

0.0571

A1

0.00

0.15

0.0000

0.0059

b

0.30

0.50

0.0118

0.0197

c

0.08

0.22

0.0031

0.0087

D

2.75

3.05

0.1083

0.1201

E

2.60

3.00

0.1024

0.1181

E1

1.45

1.75

0.0571

0.0689

e

0.95 BSC

0.0374 BSC

e1

1.90 BSC

0.0748 BSC

L

0.30

0.60

0.0118

0.0236

L1

0.60 REF

0.0236 REF

# per tape

and reel

3000 pieces

Controlling dimensions: millimeters

TOP VIEW

54

e1

e

E1 E

b

A

SIDE VIEW

D

A1

L1

END VIEW

c

L

12

3

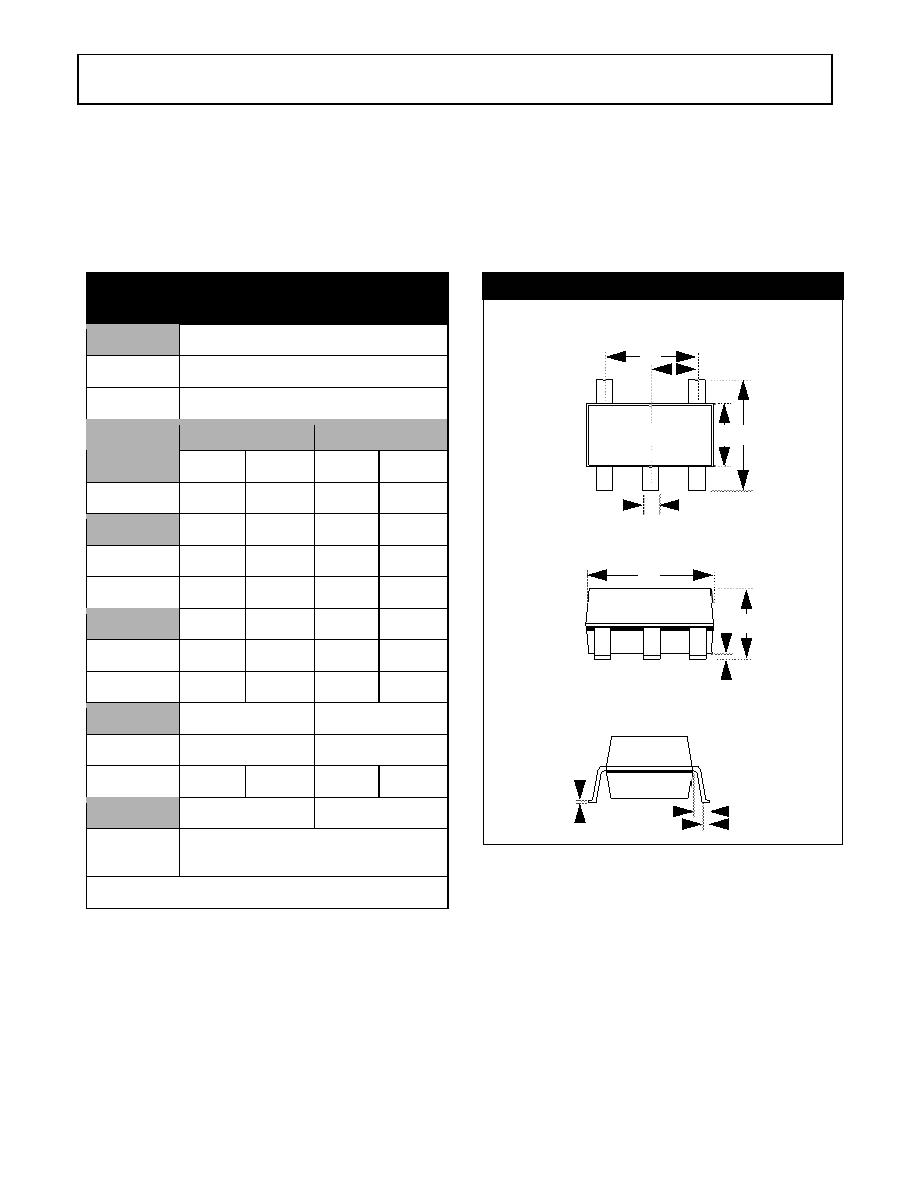

Package Dimensions for SOT23-5.
