Mechanical Details (continued)

MSOP-8 Mechanical Specifications:

The PACDN046MR is supplied in a 8-pin MSOP package. Dimensions are presented below.

PACKAGE DIMENSIONS

Package

MSOP

Pins

8

Millimeters

Inches

Dimensions

Min

Max

Min

Max

A

0.87

1.17

0.034

0.046

A1

0.05

0.25

0.002

0.010

B

0.28

0.38

0.011

0.015

C

0.13

0.23

0.005

0.009

D

2.90

3.10

0.114

0.122

E

2.90

3.10

0.114

0.122

e

0.65 BSC

0.025 BSC

H

4.90 BSC

0.193 BSC

L

0.40

0.70

0.016

0.028

# per tape

and reel

4000 pieces

Controlling dimension: inches

E

D

H

12

3

4

87

6

5

L

END VIEW

C

e

B

A

A1

SEAT ING

PLANE

SIDE VIEW

TOP VIEW

Pin 1

Marking

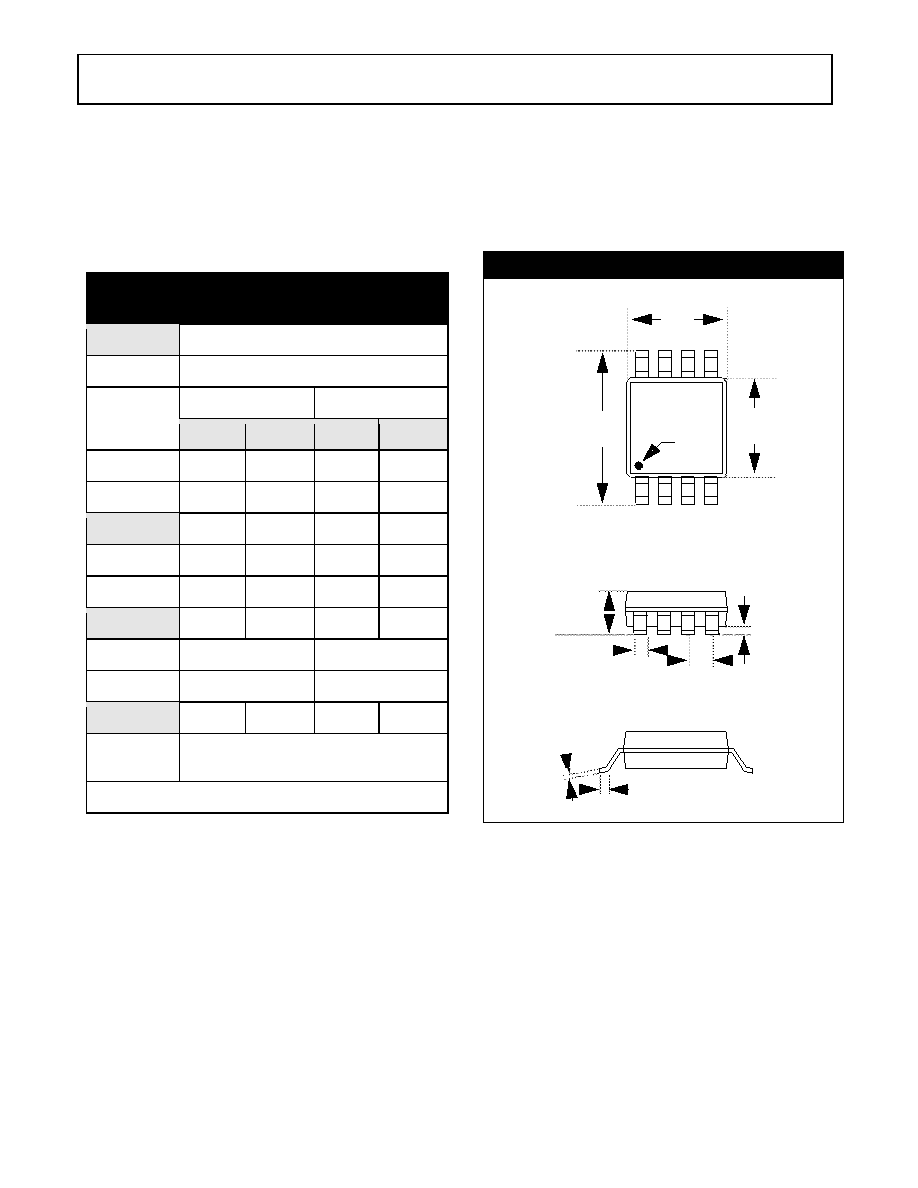

Package Dimensions for MSOP-8
