Mechanical Details (continued)

SC70-3 Mechanical Specifications

The PACDN042YB3R is supplied in a 3-pin SC70 package. Dimensions are presented below.

PACKAGE DIMENSIONS

Package

SC70-3

(JEDEC name is MO-203 Issue A)

Pins

3

Millimeters

Dimensions

Min

Max

A

0.80

1.10

A1

0.00

0.10

A2

0.70

1.00

B

0.15

0.40

c

0.08

0.25

D

1.85

2.25

E

1.15

1.35

e

0.65 BSC

HE

2.00

2.40

L

0.26

0.46

# / tape and

reel

3000 pieces

Controlling dimension: millimeters

TOP VIEW

e

A

SIDE VIEW

END VIEW

D

A1

c

12

B

e

A2

E HE

3

L

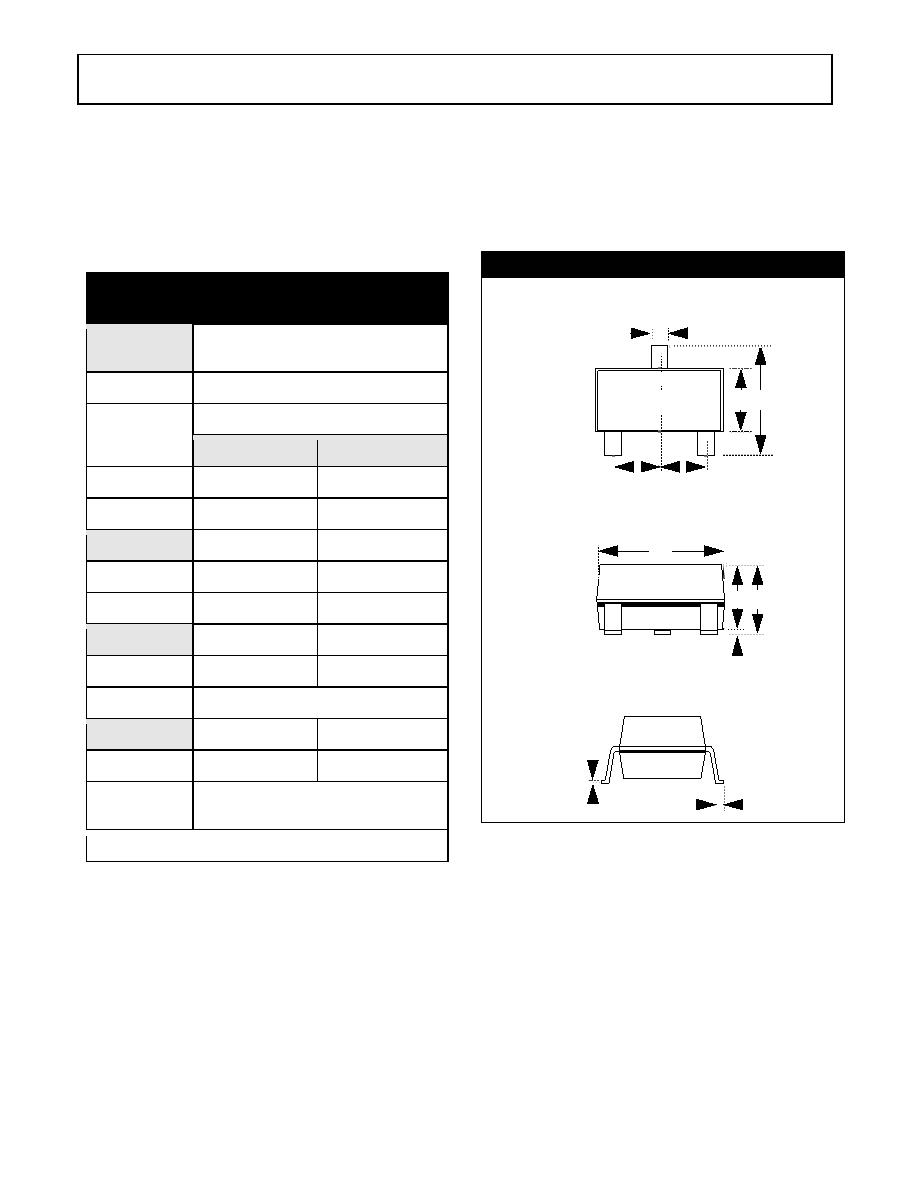

Package Dimensions for SC70-3.
