6.9.4.1.4 WKUP_LFOSC0 LVCMOS Digital Clock Source

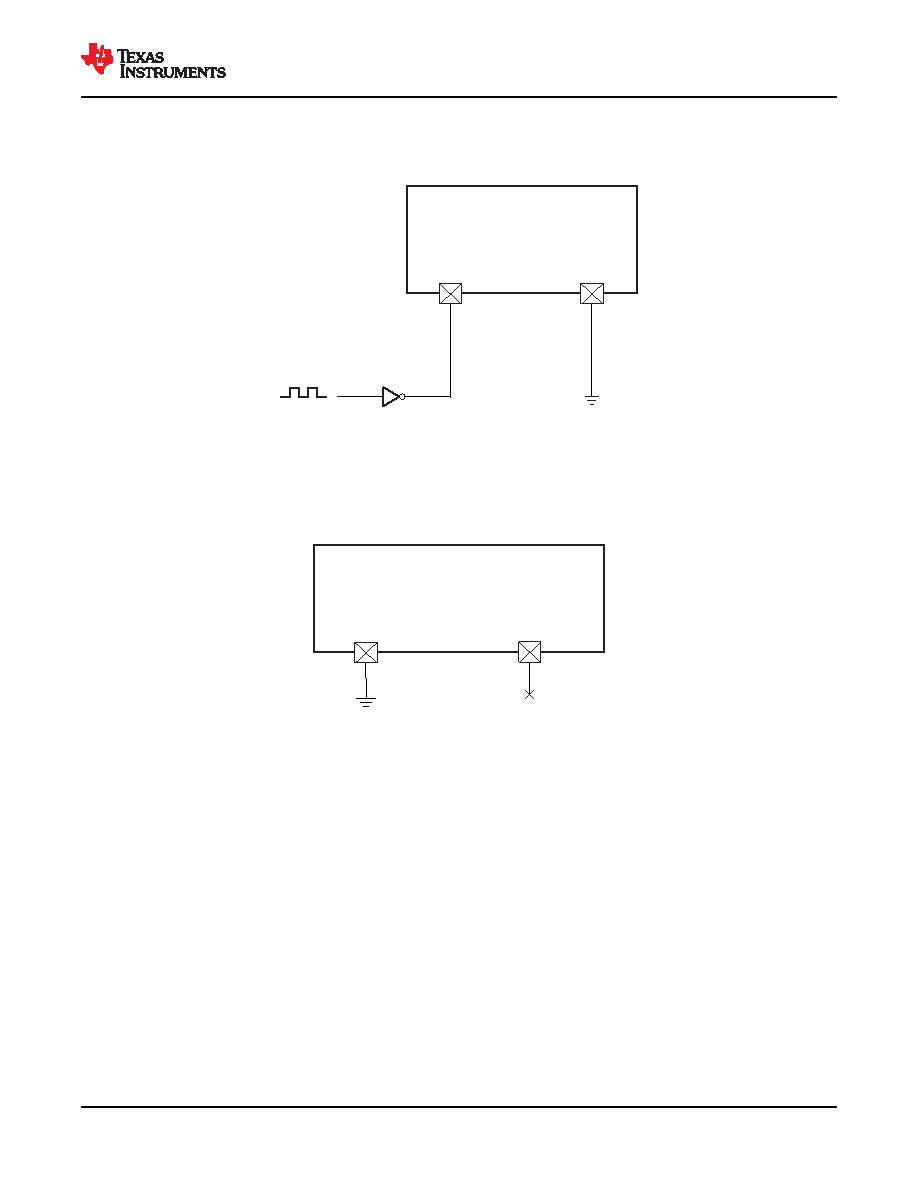

Figure 6-24 shows the recommended oscillator connections when WKUP_LFOSC0_XI is connected to a 1.8V

LVCMOS square-wave digital clock source.

Device

WKUP_LFOSC0_XO

WKUP_LFOSC0_XI

AM62x_MCU_OSC_EXT_CLK_03

PCB Ground

Figure 6-24. 1.8V LVCMOS-Compatible Clock Input

6.9.4.1.5 WKUP_LFOSC0 Not Used

Figure 6-25 shows the recommended oscillator connections when WKUP_LFOSC0 is not used.

Device

PCB Ground

WKUP_LFOSC0_XO

WKUP_LFOSC0_XI

Figure 6-25. WKUP_LFOSC0 Not Used

www.ti.com

TDA4VEN-Q1, TDA4AEN-Q1

SPRSP96A – MARCH 2024 – REVISED SEPTEMBER 2024

Submit Document Feedback

119

Product Folder Links: TDA4VEN-Q1 TDA4AEN-Q1
