GPMC_FCLK

GPMC_CSn[i]

GPMC_BE0n_CLE

GPMC_ADVn_ALE

GPMC_OEn_REn

GPMC_WEn

GPMC_AD[15:0]

Address

GNF0

GNF1

GNF7

GNF3

GNF4

GNF6

GNF8

GNF9

GPMC_13

In GPMC_CSn[i], i is equal to 0, 1, 2 or 3.

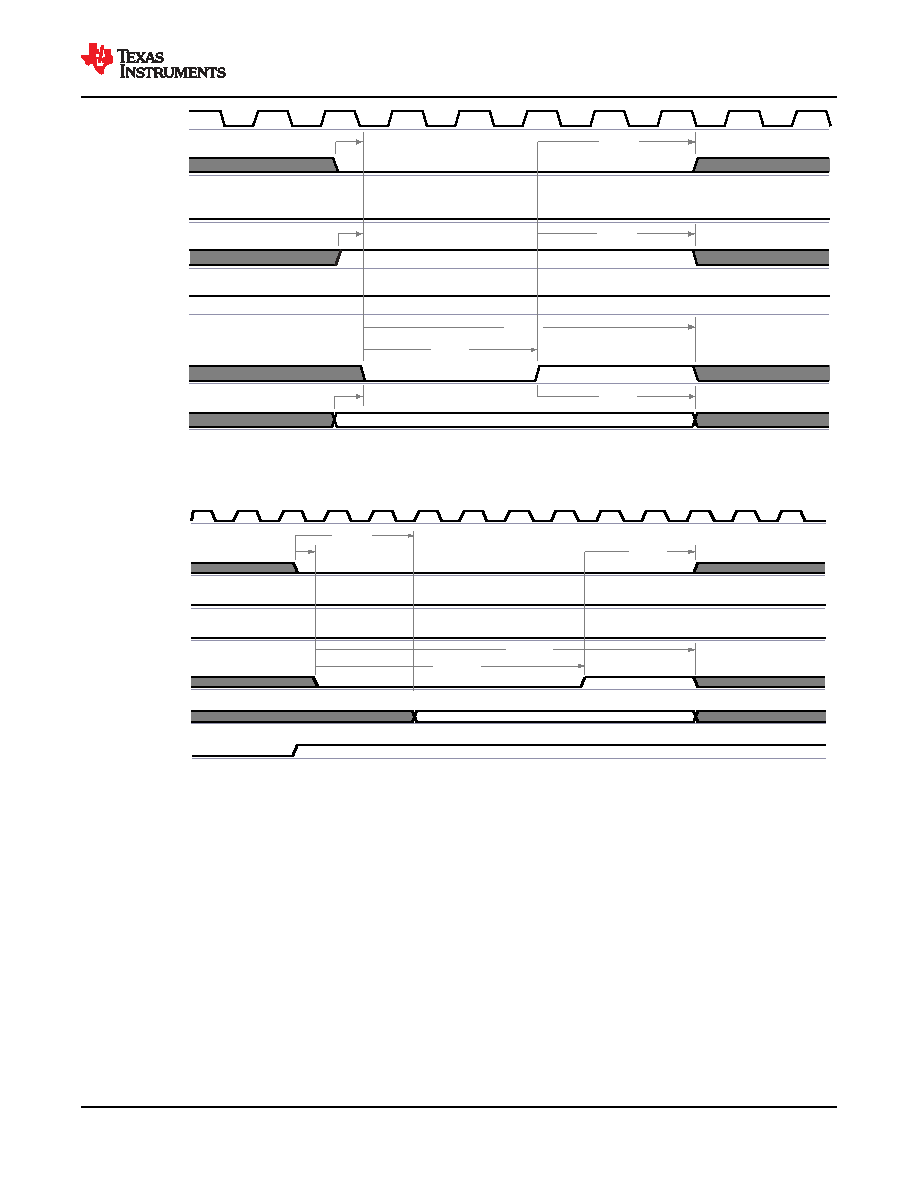

Figure 6-59. GPMC and NAND Flash — Address Latch Cycle

GPMC_CSn[i]

GPMC_BE0n_CLE

GPMC_ADVn_ALE

GPMC_OEn_REn

GPMC_FCLK

GPMC_WAIT[j]

GNF10

GNF14

GNF15

GNF12

GNF13

DATA

GPMC_AD[15:0]

GPMC_14

GNF12 parameter illustrates amount of time required to internally sample input data. It is expressed in number of GPMC functional

clock cycles. From start of read cycle and after GNF12 functional clock cycles, input data will be internally sampled by active functional

clock edge. GNF12 value must be stored inside AccessTime register bits field.

GPMC_FCLK is an internal clock (GPMC functional clock) not provided externally.

In GPMC_CSn[i], i is equal to 0, 1, 2 or 3. In GPMC_WAIT[j], j is equal to 0 or 1.

Figure 6-60. GPMC and NAND Flash — Data Read Cycle

www.ti.com

TDA4VEN-Q1, TDA4AEN-Q1

SPRSP96A – MARCH 2024 – REVISED SEPTEMBER 2024

Submit Document Feedback

161

Product Folder Links: TDA4VEN-Q1 TDA4AEN-Q1
