ISL85415

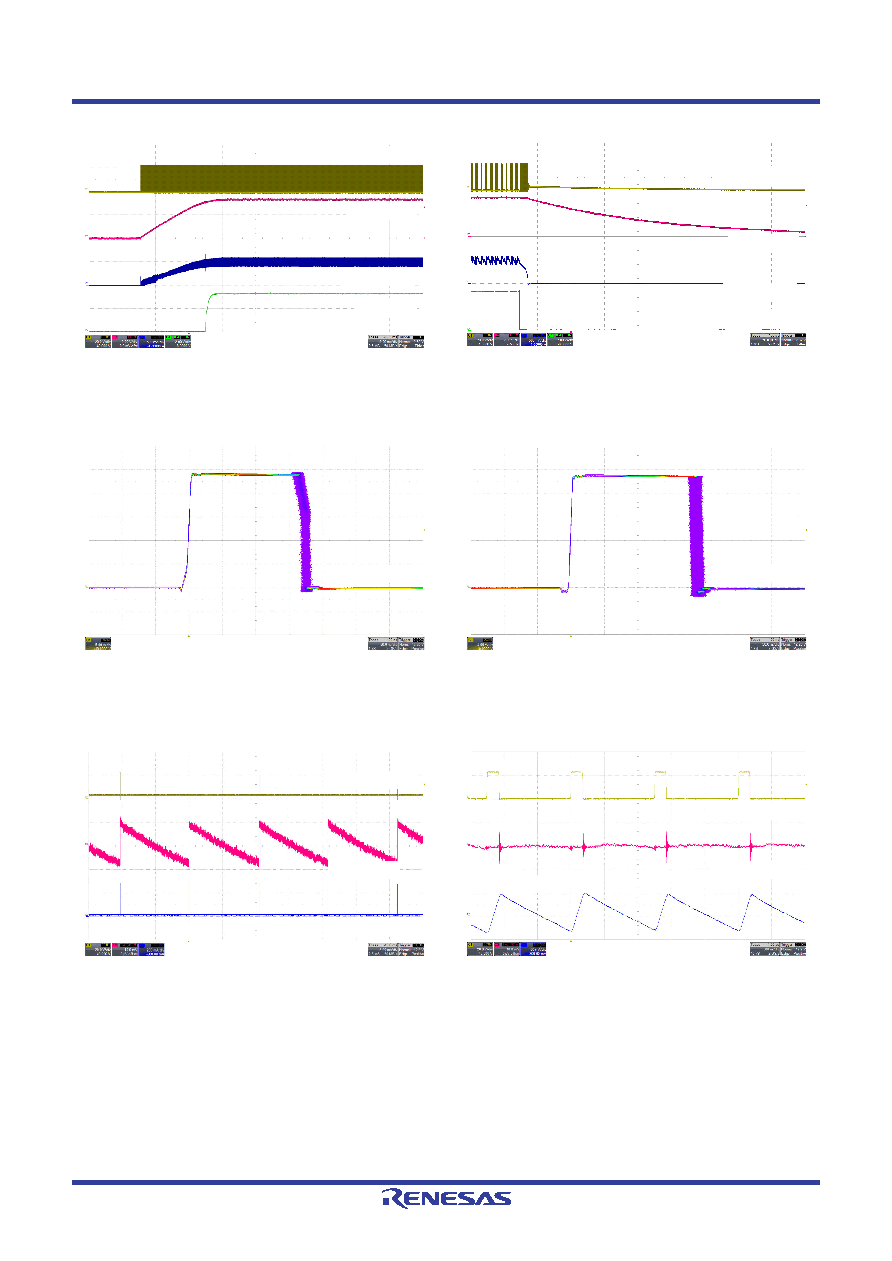

4. Typical Performance Curves
FN8373 Rev.5.01
Page 16 of 30
Jun.4.20
Figure 39. Start-Up at 500mA, PFM
Figure 40. Shutdown at 500mA, PFM
Figure 41. Jitter at No Load, PWM
Figure 42. Jitter at 500mA, PWM
Figure 43. Steady State at No Load, PFM
Figure 44. Steady State at No Load, PWM
VIN = 24V, VOUT = 3.3V, fSW = 800kHz, TA = +25°C. (Continued)
VOUT 2V/Div
IL 500mA/Div
PG 2V/Div
5ms/Div
PHASE 20V/Div
VOUT 2V/Div
IL 500mA/Div
PG 2V/Div
50µs/Div
PHASE 20V/Div
PHASE 5V/Div
50ns/Div
50ns/Div
PHASE 5V/Div
VOUT 10mV/Div
IL 200mA/Div
5ms/Div
PHASE 20V/Div
VOUT 10mV/Div
IL 100mA/Div
500ns/Div
PHASE 20V/Div
