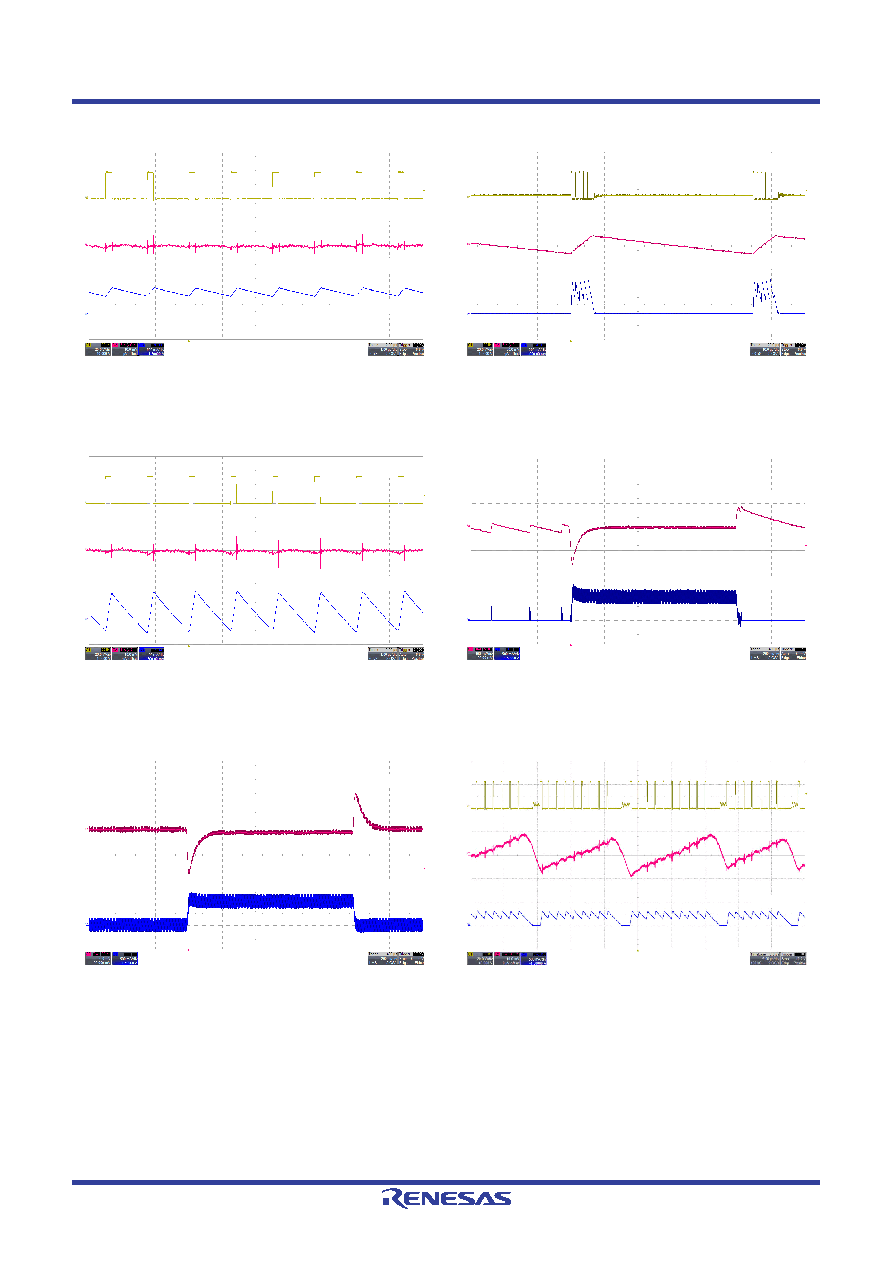

background image
ISL85415
4. Typical Performance Curves
FN8373 Rev.5.01
Page 17 of 30
Jun.4.20
Figure 45. Steady State at 500mA Load, PWM
Figure 46. Light Load Operation at 20mA, PFM
Figure 47. Light Load Operation at 20mA, PWM
Figure 48. Load Transient, PFM
Figure 49. Load Transient, PWM
Figure 50. PFM to PWM Transition
VIN = 24V, VOUT = 3.3V, fSW = 800kHz, TA = +25°C. (Continued)
VOUT 10mV/Div
IL 500mA/Div
1µs/Div
PHASE 20V/Div
10µs/Div
VOUT 50mV/Div
IL 200mA/Div
PHASE 20V/Div
VOUT 10mV/Div
IL 100mA/Div
1µs/Div
PHASE 20V/Div
VOUT 100mV/Div
IL 500mA/Div
200µs/Div
VOUT 50mV/Div
IL 500mA/Div
200µs/Div
VOUT 10mV/Div
IL 1A/Div
2µs/Div
PHASE 20V/Div
