FT93x Datasheet Embedded Microcontroller Datasheet
Version 1.5
Document Reference No.: BRT_000051
Clearance No.: BRT#049

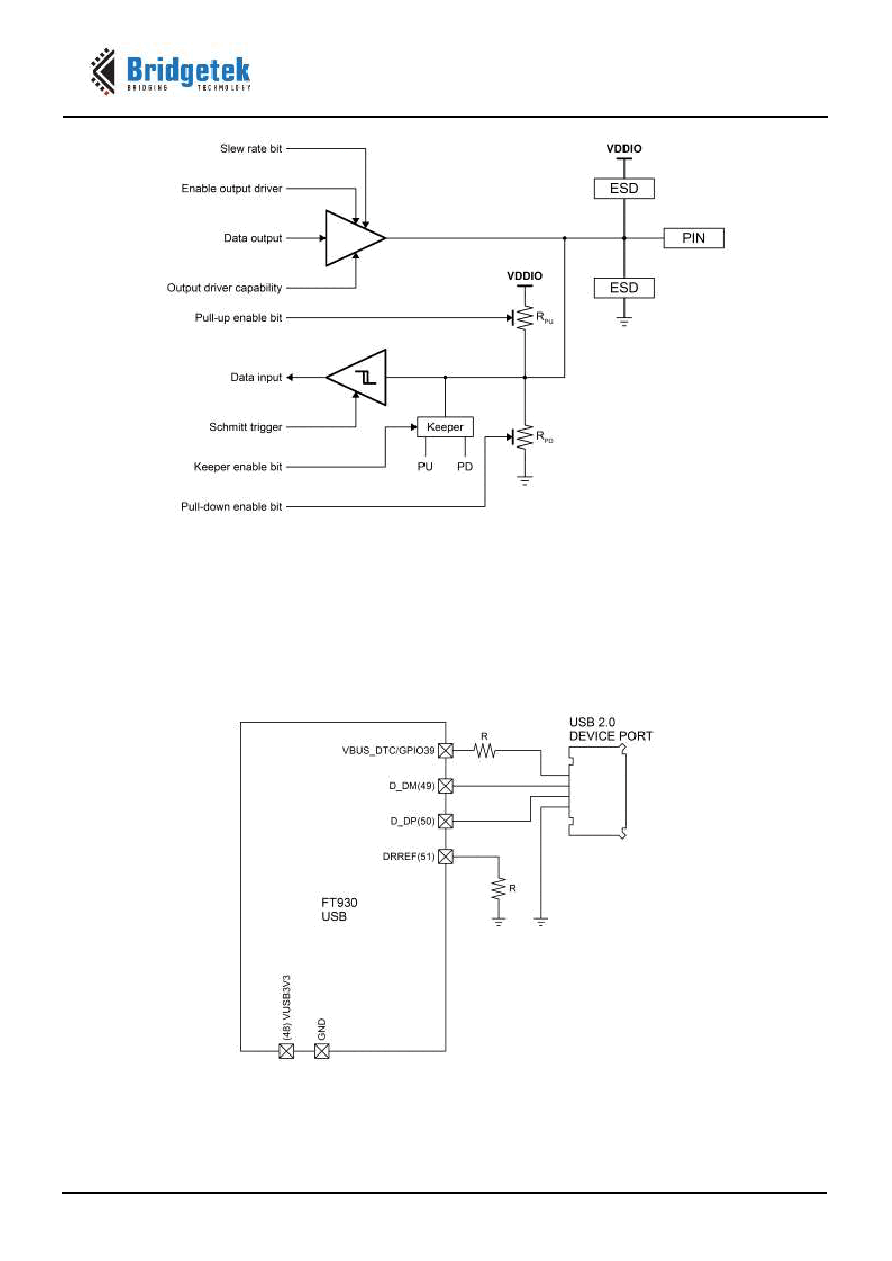

Figure 6-5 GPIO I/O Port Connection
6.4
USB2.0 Device Interface
The example diagram in Figure 6-6 shows the FT93x series supporting one USB2.0 device port which
makes FT93x system data transfer easier via a USB adapter.
Figure 6-6 USB2.0 Port Connection
The FT93x system shall provide I/O power (+3.3V supply) on VUSB3V3.
The internal band-gap gets a reference voltage from DRREF with an external reference resistor R (12KΩ
±1%) connected to GND.
