Copyright © Bridgetek Pte Ltd
54
FT93x Datasheet Embedded Microcontroller Datasheet
Version 1.5
Document Reference No.: BRT_000051
Clearance No.: BRT#049
6.5
USB Connection when Unused (FT93x)
If the USB Device is not used in the end application, connect VUSB3V3 and DRREF to ground. See Figure
6-10 and Figure 6-11.

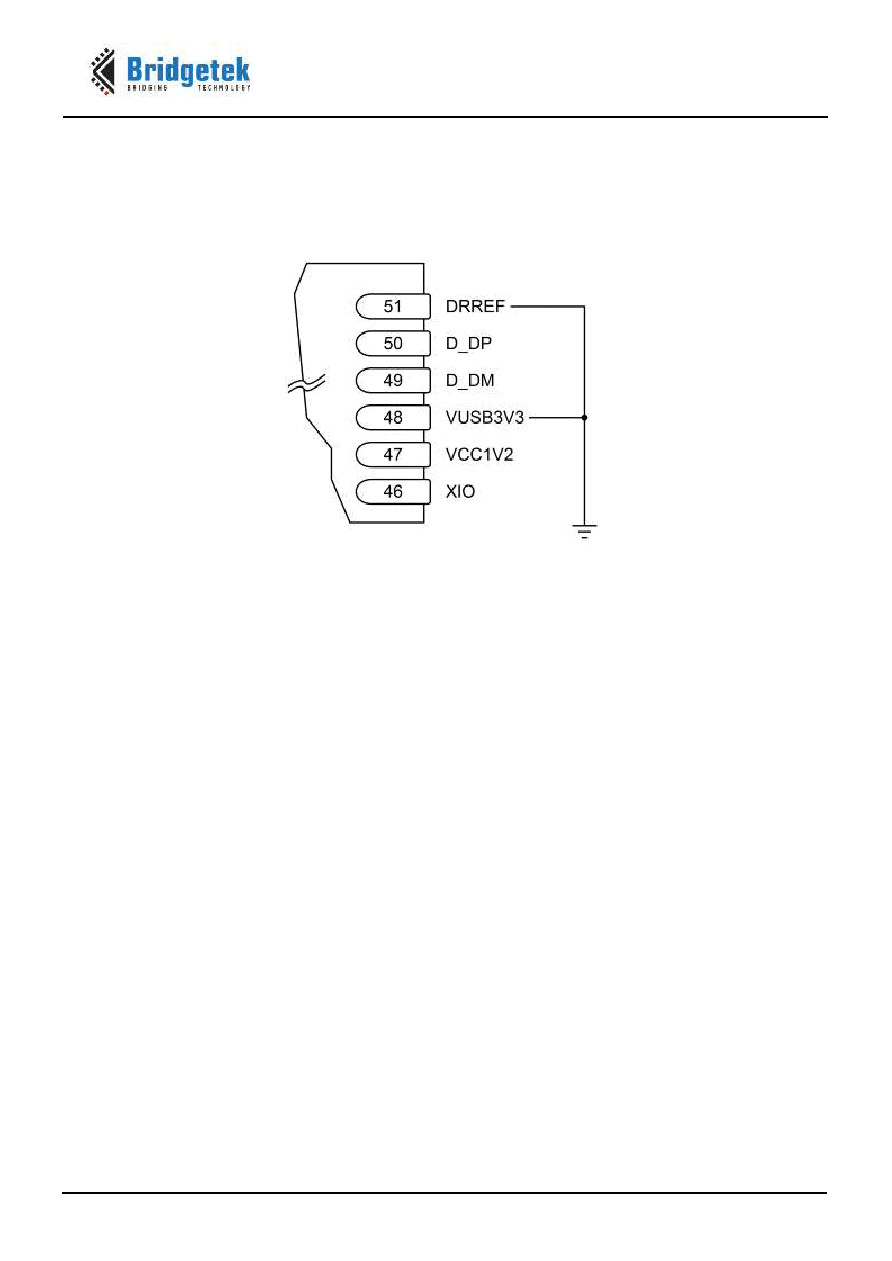

Figure 6-7 Unused USB Connection (QFN)
