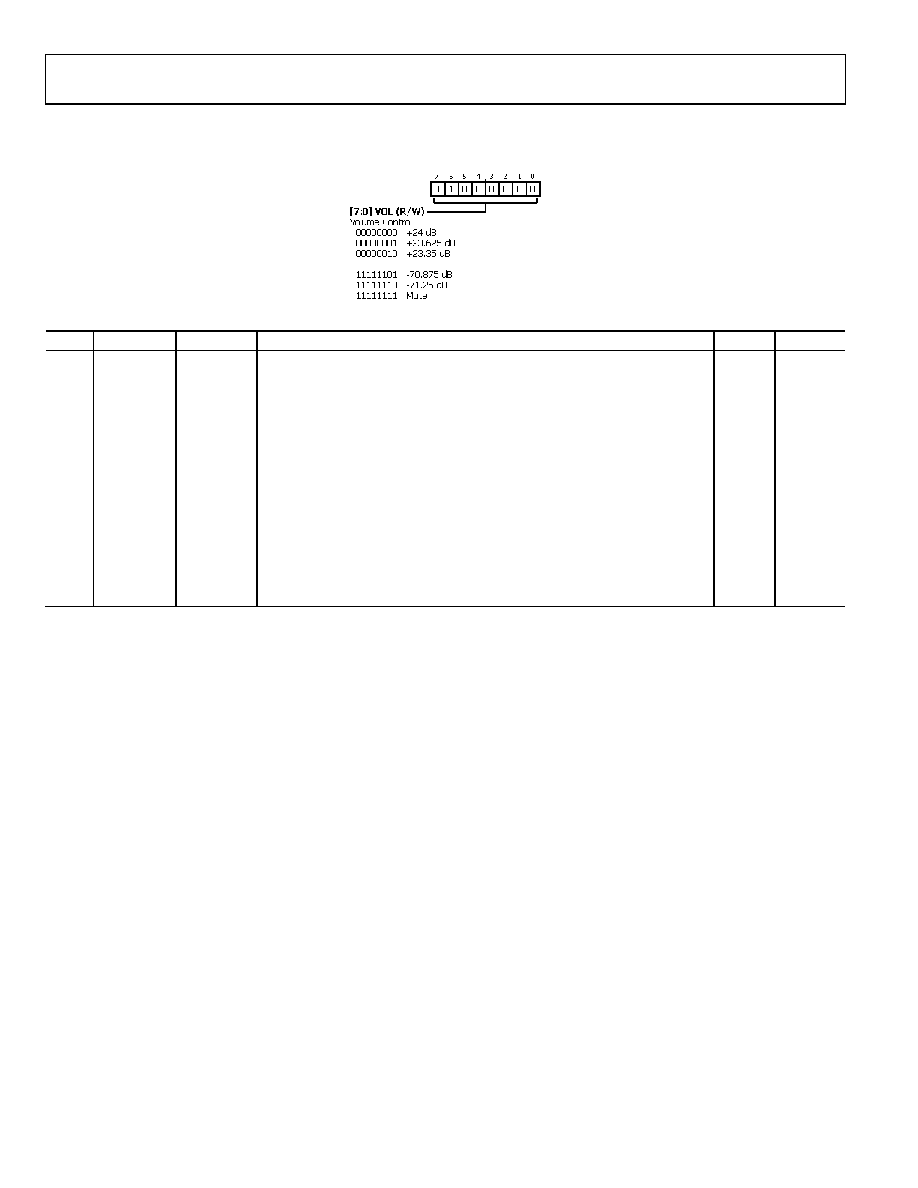

SSM4567
Data Sheet
Rev. 0| Page 36 of 52
DAC VOLUME CONTROL REGISTER
Address: 0x03, Reset: 0x40, Name: DAC_VOLUME
Table 29. Bit Descriptions for DAC_VOLUME
Bits
Bit Name
Settings
Description
Reset
Access
[7:0]
VOL
Volume Control
0x40
R/W
00000000
+24 dB
00000001
+23.625 dB
00000010
+23.35 dB
00000011
+22.875 dB
00000100
+22.5 dB
00000101
...
00111111
+0.375 dB
01000000
0
01000001
-0.375 dB
01000010
...
11111101
−70.875 dB
11111110
−71.25 dB
11111111
Mute
