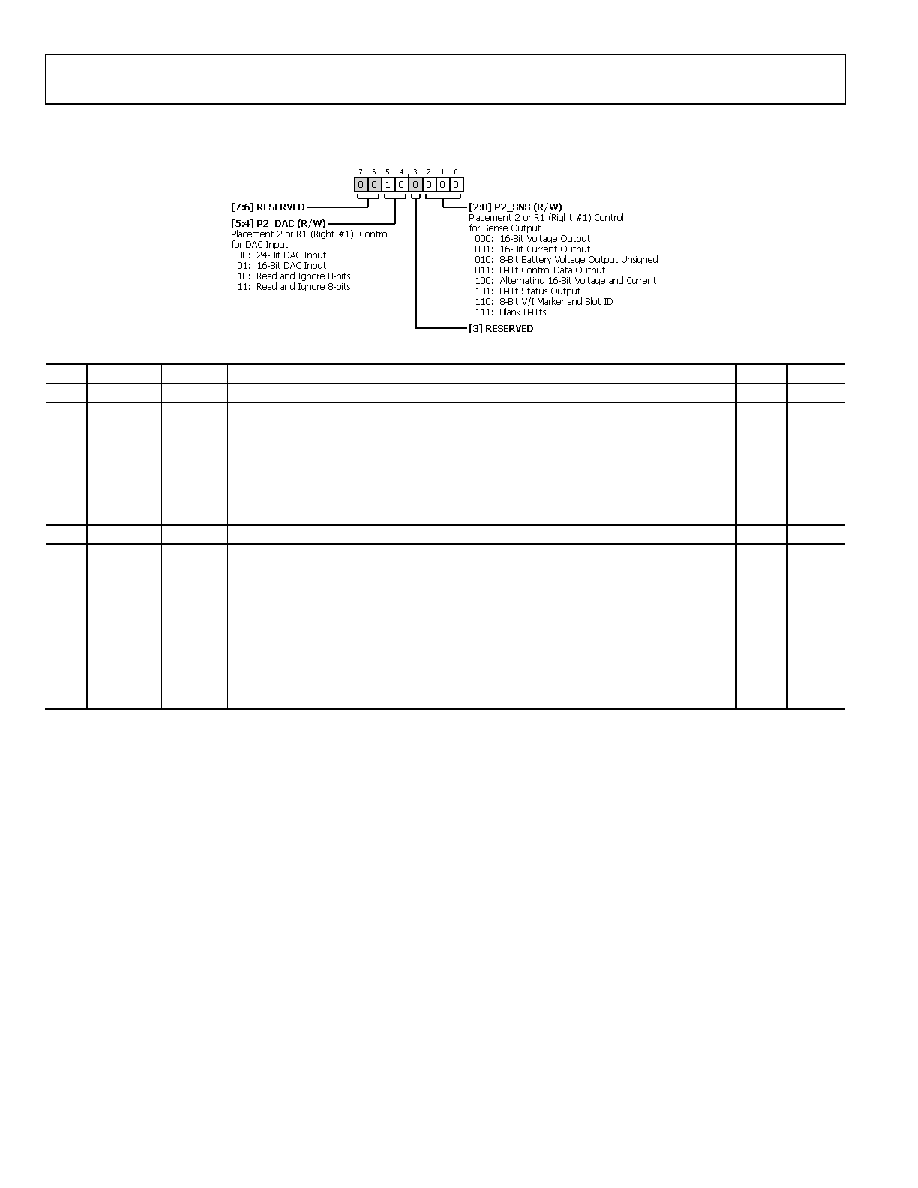

SERIAL AUDIO INTERFACE PLACEMENT 2 CONTROL REGISTER

Address: 0x07, Reset: 0x20, Name: SAI_PLACEMENT_2

Table 33. Bit Descriptions for SAI_PLACEMENT_2

Bits

Bit Name

Settings

Description

Reset

Access

[7:6]

RESERVED

Reserved.

0x0

R/W

[5:4]

P2_DAC

Placement 2 or R1 (Right 1) Control for DAC Input. Selects the size of the data to be

read. 24 bits or 16 bits. This slot can also be set to read in eight bits, throw them away,

and move on to Placement P3 to read the audio data.

0x2

R/W

24-Bit DAC Input

16-Bit DAC Input

Read and Ignore 8 bits

RESERVED

Reserved.

0x0

R/W

[2:0]

P2_SNS

Placement 2 or R1 (Right 1) Control for Sense Output.

0x0

R/W

000

16-Bit Voltage Output

001

16-Bit Current Output

010

8-Bit Battery Voltage Output Unsigned

011

8-Bit Control Data Output

100

Alternating 16-Bit Voltage and Current

101

8-Bit Status Output

110

8-Bit V/I Marker and Slot ID

111

Blank 8 Bits
