SSM4567

Data Sheet

Rev. 0| Page 52 of 52

OUTLINE DIMENSIONS

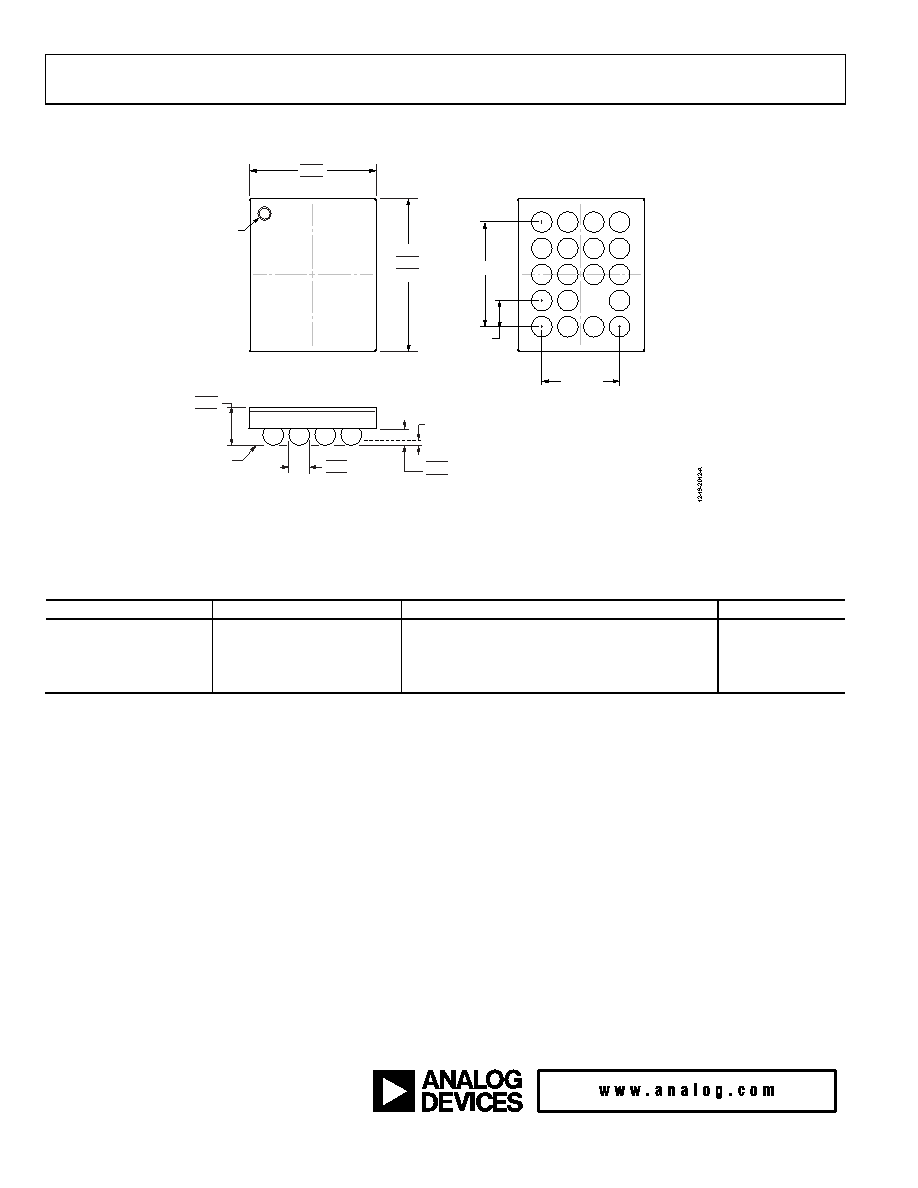

Figure 58. 19-Ball Wafer Level Chip Scale Package [WLCSP]

(CB-19-1)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

SSM4567ACBZ-R7

−40°C to +85°C

19-Ball WLCSP

CB-19-1

SSM4567ACBZ-RL

−40°C to +85°C

19-Ball WLCSP

CB-19-1

EVAL-SSM4567Z

Evaluation Board

EVAL-SSM4567MINIZ

Evaluation Board

1 Z = RoHS Compliant Part.

I2C refers to a communications protocol originally developed by Philips Semiconductors (now NXP Semiconductors).

2.140

2.100

2.060

1.780

1.740

1.700

BOTTOM VIEW

(BALL SIDE UP)

TOP VIEW

(BALL SIDE DOWN)

BALL A1

IDENTIFIER

0.40

BSC

0.560

0.500

0.440

SIDE VIEW

0.230

0.200

0.170

0.300

0.260

0.220

1.60 REF

1.20 REF

COPLANARITY

0.05

SEATING

PLANE

registered trademarks are the property of their respective owners.

D12278-0-4/14(0)
