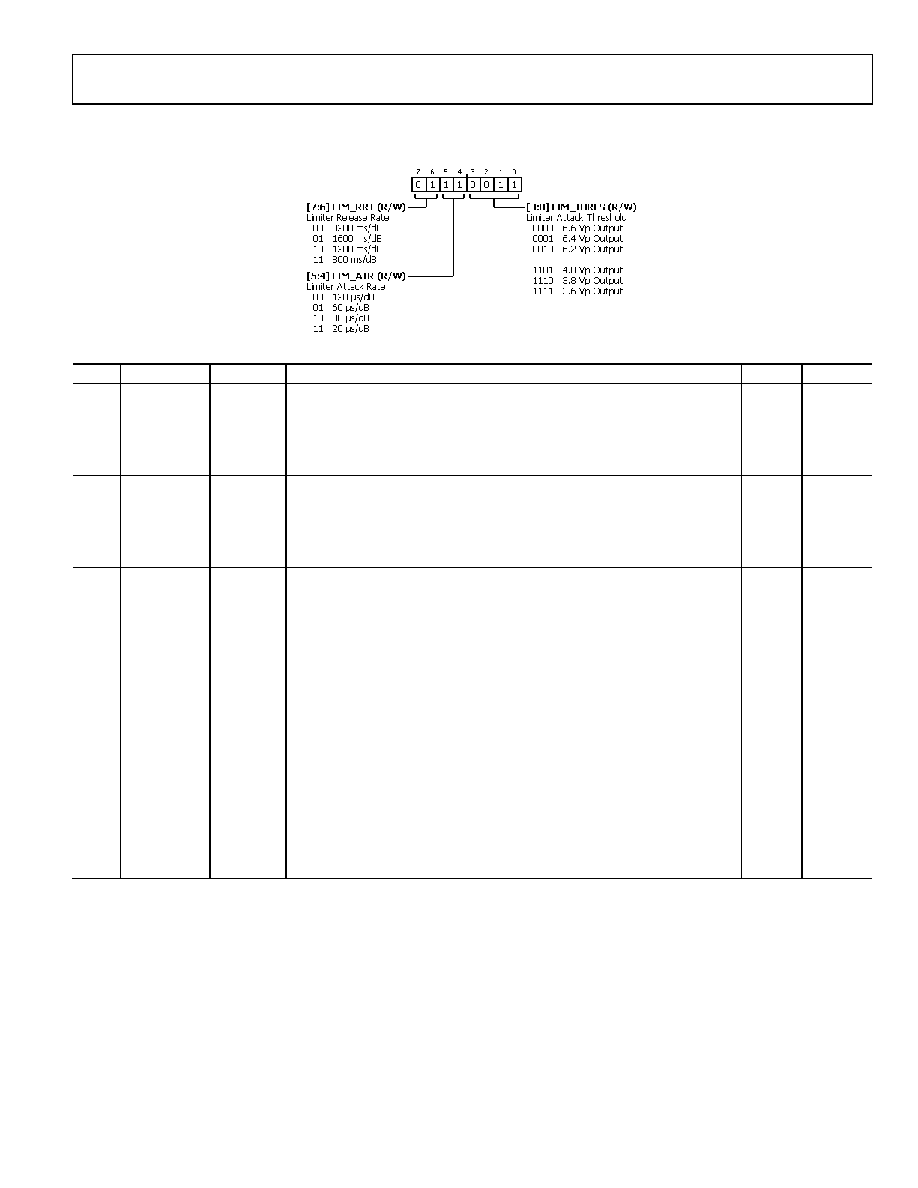

Data Sheet
SSM4567
Rev. 0| Page 45 of 52
LIMITER CONTROL 2 REGISTER
Address: 0x0E, Reset: 0x73, Name: LIMITER_CTRL_2
Table 40. Bit Descriptions for LIMITER_CTRL_2
Bits
Bit Name
Settings
Description
Reset
Access
[7:6]
LIM_RRT
Limiter Release Rate
0x1
R/W
00
3200 ms/dB
01
1600 ms/dB
10
1200 ms/dB
11
800 ms/dB
[5:4]
LIM_ATR
Limiter Attack Rate
0x3
R/W
00
120 μs/dB
01
60 μs/dB
10
30 μs/dB
11
20 μs/dB
[3:0]
LIM_THRES
Limiter Attack Threshold
0x3
R/W
0000
6.6 V peak Output
0001
6.4 V peak Output
0010
6.2 V peak Output
0011
6.0 V peak Output
0100
5.8 V peak Output
0101
5.6 V peak Output
0110
5.4 V peak Output
0111
5.2 V peak Output
1000
5.0 V peak Output
1001
4.8 V peak Output
1010
4.6 V peak Output
1011
4.4 V peak Output
1100
4.2 V peak Output
1101
4.0 V peak Output
1110
3.8 V peak Output
1111
3.6 V peak Output
