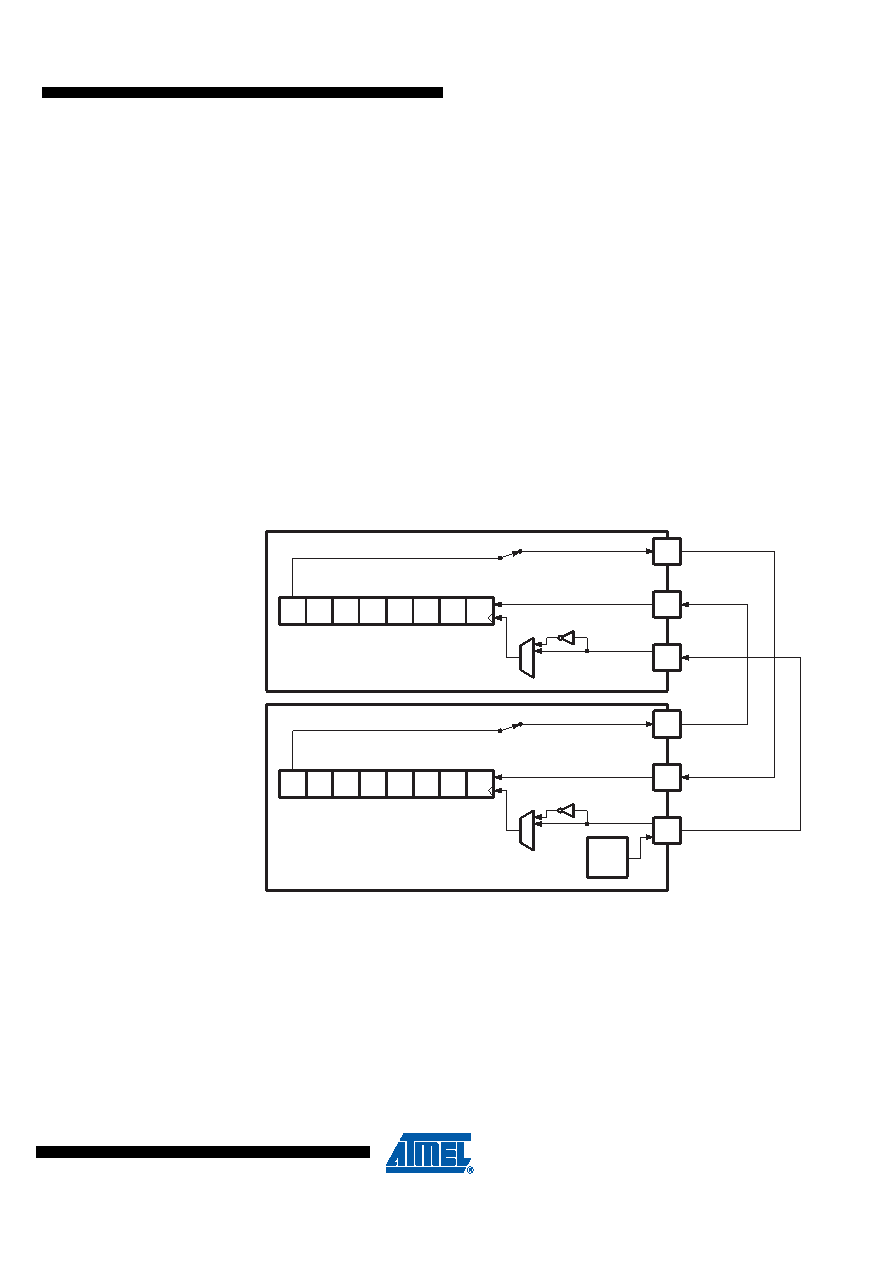

129 / 227 page ![]() 129 7753C–AVR–07/09 ATtiny261/ATtiny461/ATtiny861 The 4-bit counter can be both read and written via the data bus, and can generate an overflow interrupt. Both the USI Data Register and the counter are clocked simultaneously by the same clock source. This allows the counter to count the number of bits received or transmitted and generate an interrupt when the transfer is complete. Note that when an external clock source is selected the counter counts both clock edges. In this case the counter counts the number of edges, and not the number of bits. The clock can be selected from three different sources: The USCK pin, Timer/Counter0 Compare Match or from software. The Two-wire clock control unit can generate an interrupt when a start condition is detected on the Two-wire bus. It can also generate wait states by holding the clock pin low after a start con- dition is detected, or after the counter overflows. 17.3 Functional Descriptions 17.3.1 Three-wire Mode The USI Three-wire mode is compliant to the Serial Peripheral Interface (SPI) mode 0 and 1, but does not have the slave select (SS) pin functionality. However, this feature can be implemented in software if necessary. Pin names used by this mode are: DI, DO, and USCK. Figure 17-2. Three-wire Mode Operation, Simplified Diagram Figure 17-2 shows two USI units operating in Three-wire mode, one as Master and one as Slave. The two USI Data Register are interconnected in such way that after eight USCK clocks, the data in each register are interchanged. The same clock also increments the USI’s 4-bit coun- ter. The Counter Overflow (interrupt) Flag, or USIOIF, can therefore be used to determine when a transfer is completed. The clock is generated by the Master device software by toggling the USCK pin via the PORT Register or by writing a one to the USITC bit in USICR. SLAVE MASTER Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 DO DI USCK Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 DO DI USCK PORTxn |
|
