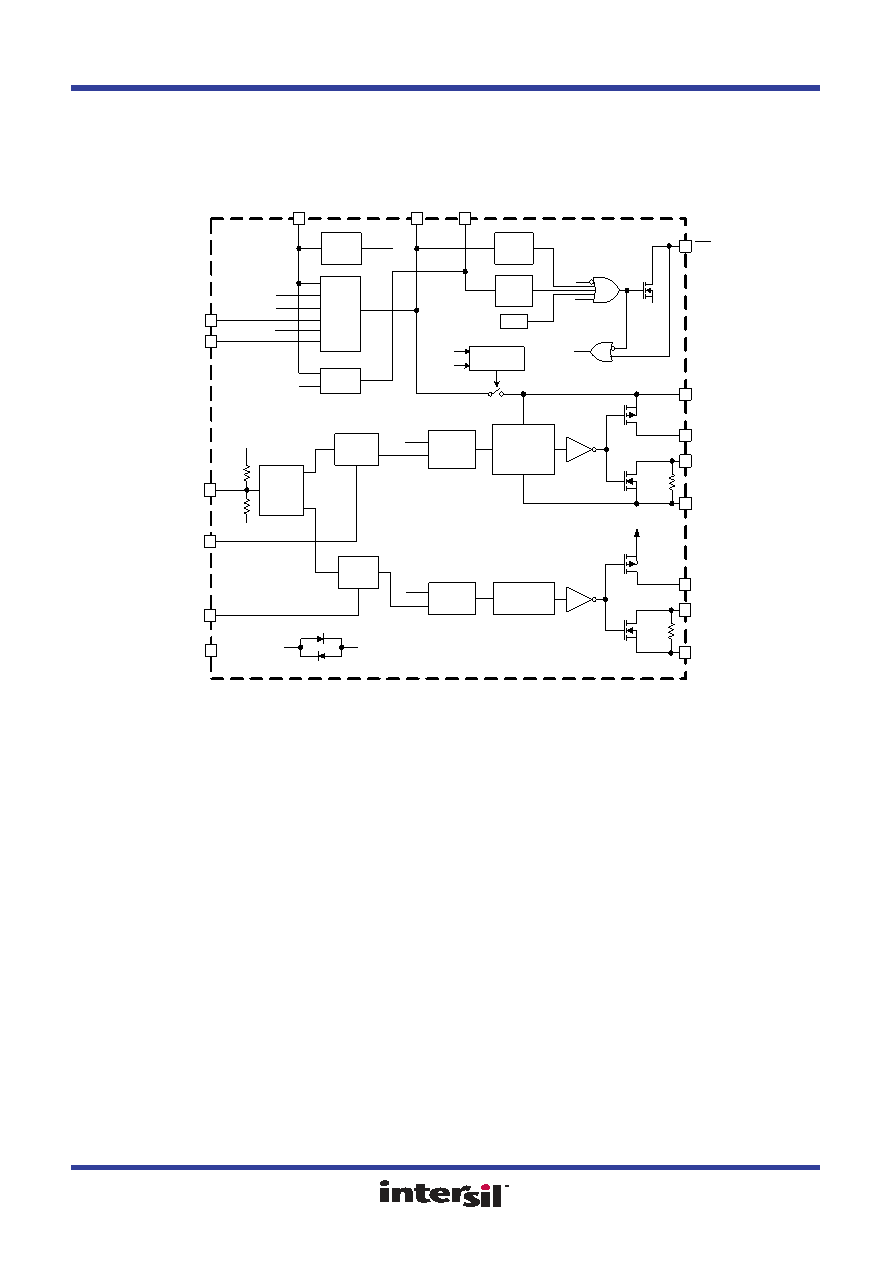

3 / 40 page  R34DS0017EU0104 Rev.1.04 Page 3 Jan 31, 2025 ISL73041SEH Datasheet 1. Overview 1.1 Block Diagram Figure 2. Circuit Block Diagram PWM BOOT UGH UGL PHS LGH LGL PVCC PGND VDD RDU RDL FB EN PVCC Level Shift & Boot UVLO PVCC UVLO Leading Delay Leading Delay Matching Delay PVCC LDO OTP AVCC LDO AVCC Low-Side Logic High-Side Logic SGND Switch Control PWM PHS SGND PGND 1kΩ 500Ω EN AVCC UVLO SGND DR_EN DR_EN DR_EN VDD UVLO AVCC UV VDD UV VDD UV VDD UV VDD UV HI LOW Tri-Level Comparator SGND AVCC 225kΩ 150kΩ VREF FLT |
|
