R34DS0017EU0104 Rev.1.04
Page 22
Jan 31, 2025
ISL73041SEH Datasheet

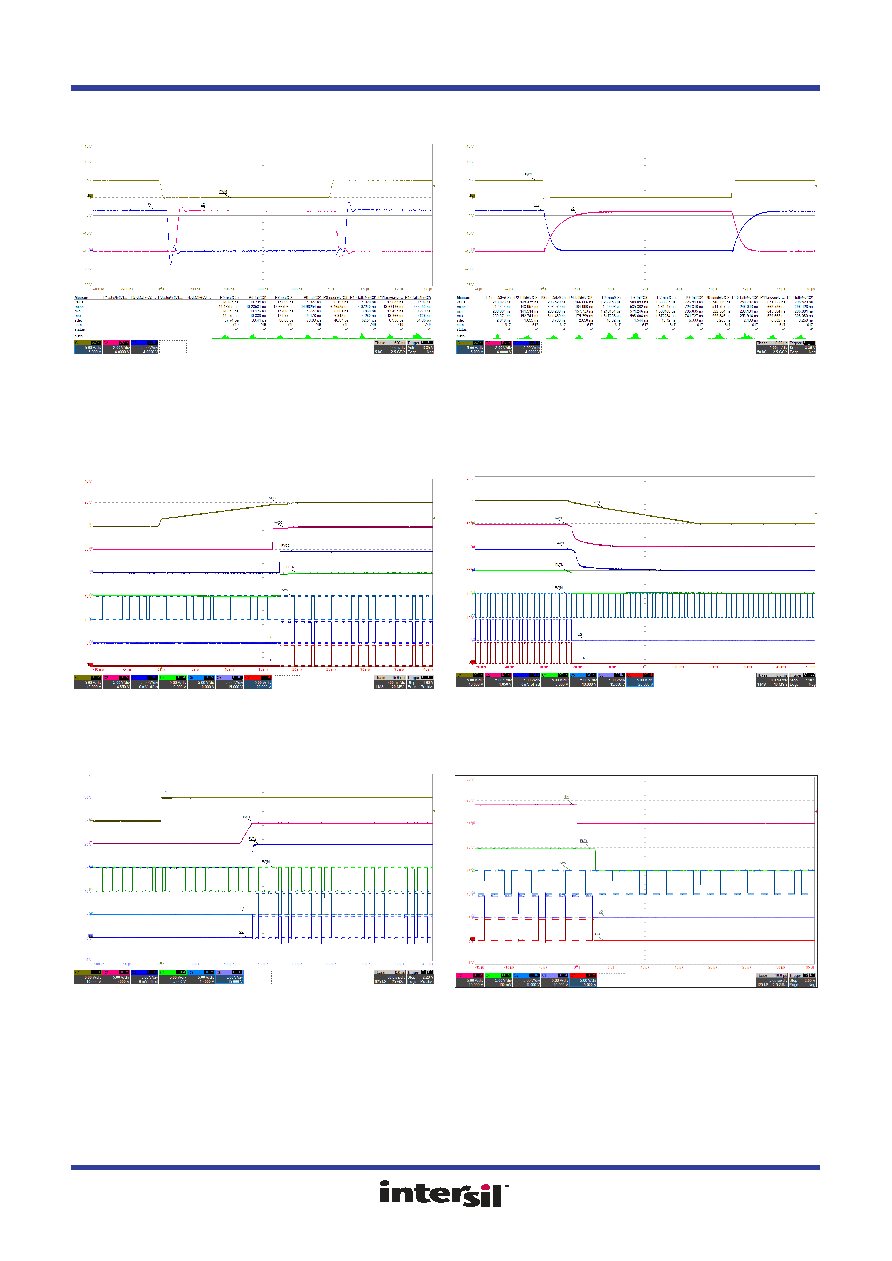

Figure 40. UG and LG Transient Response; 5.1nF on UG
and 10nF on LG vs
Figure 41. UG and LG Transient Response; 470nF on UG
and 1000nF on LG
Figure 42. VDD Power-Up Sequence with EN = VDD
Figure 43. VDD Power-Down Sequence with EN = VDD
Figure 44. EN Rising Sequence
Figure 45. EN Falling Transient Response
Unless otherwise specified, typical performance curves are at VDD=12V, PHS=0V; PVCC=4.5V and TA = +25°C.
