R34DS0017EU0104 Rev.1.04
Page 23
Jan 31, 2025
ISL73041SEH Datasheet

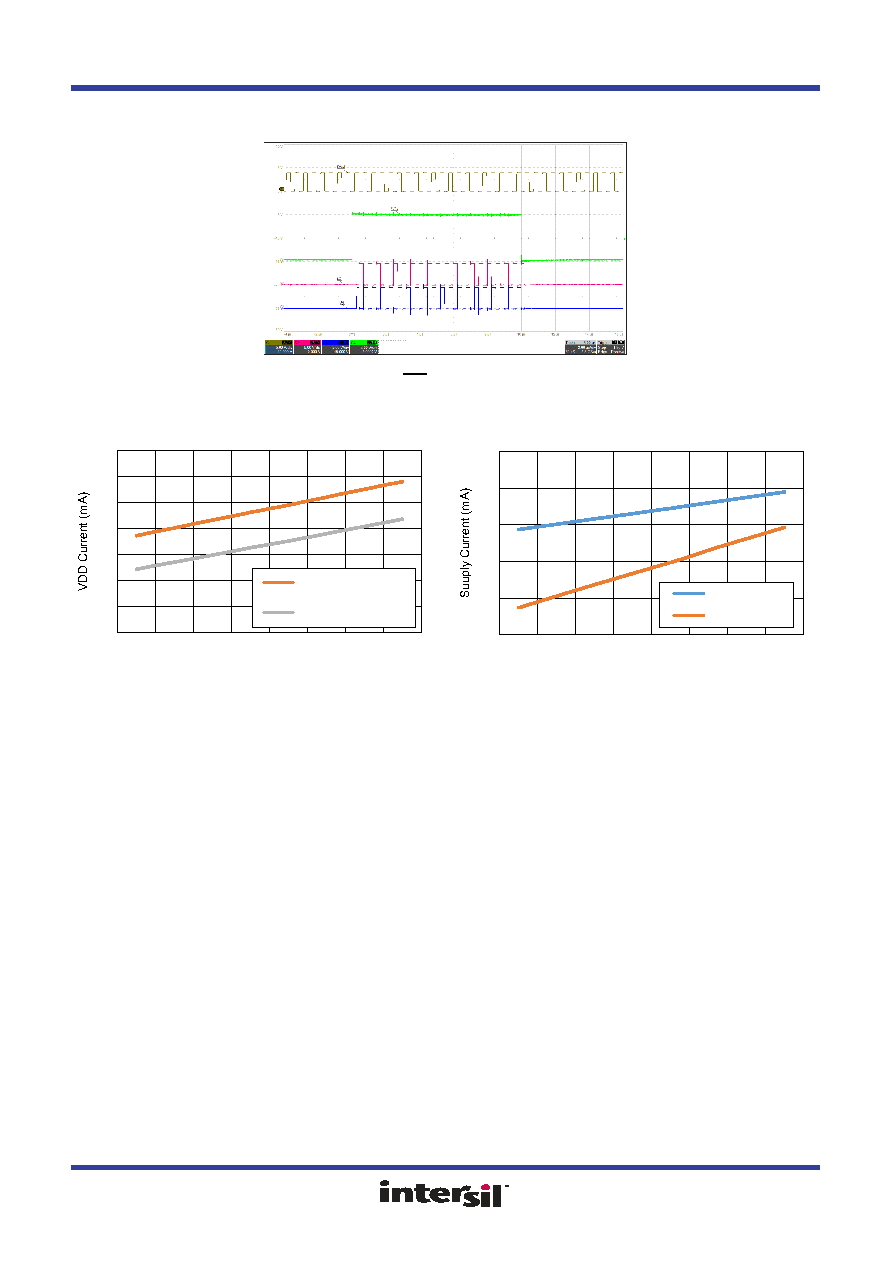

Figure 46. FLT Pin Response Time
Figure 47. VDD Dynamic Operating Current vs fSW;
PVCC = BOOT = 4.5V; PHS = GND;
No load on UG and LG
Figure 48. VDD and BOOT Dynamic Operating Current
vs fSW; VDD = PHS = 12V; PVCC = BOOT-PHS = 4.5V;
No load on UG and LG; RDU = RDL= 0V
Unless otherwise specified, typical performance curves are at VDD=12V, PHS=0V; PVCC=4.5V and TA = +25°C.
0
5
10
15
20
25
30
35
0
200
400
600
800
1000
1200
1400
1600
Frequency (kHz)
RDU = RDL = 1.3kΩ
RDU = RDL = 10kΩ
0
5
10
15
20
25
0
200
400
600
800
1000
1200
1400
1600
Frequency (kHz)
I_VDD (mA)
I_BOOT (mA)
