R34DS0017EU0104 Rev.1.04
Page 18
Jan 31, 2025
ISL73041SEH Datasheet

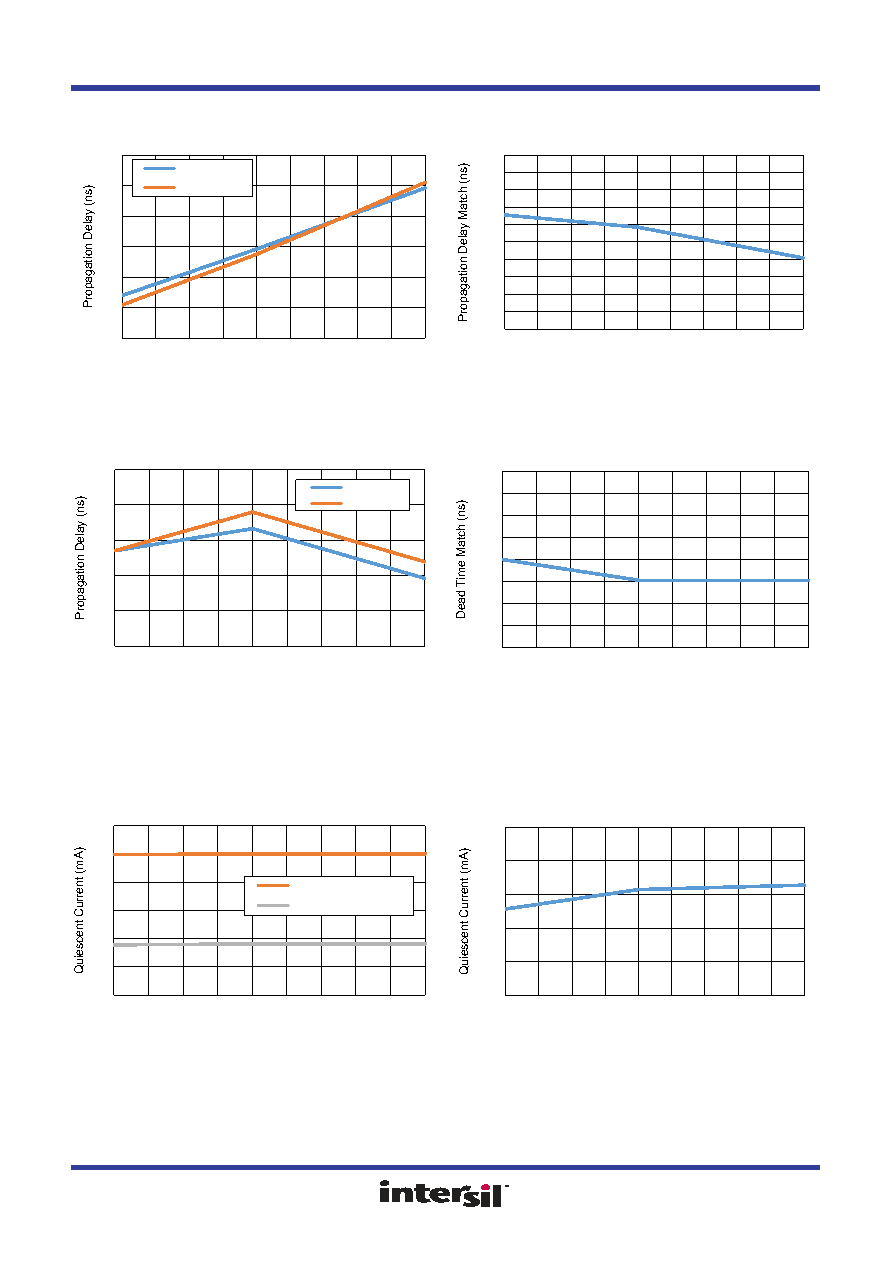

Figure 16. Propagation Delay vs Temperature
Figure 17. Propagation Delay Matching vs Temperature
Figure 18. Dead Time Delay vs Temperature;
RDU = RDL = 10kΩ
Figure 19. Dead Time Delay Matching vs Temperature;
RDU = RDL = 10kΩ
Figure 20. VDD Static Bias Current vs RDU/RDL vs
Temperature; Enabled; PWM = Float
Figure 21. BOOT Static Bias Current vs Temperature;
PWM = Float
Unless otherwise specified, typical performance curves are at VDD=12V, PHS=0V; PVCC=4.5V and TA = +25°C.
