Data Sheet
ADIN1300
APPLICATIONS INFORMATION
analog.com
Rev. B | 46 of 96

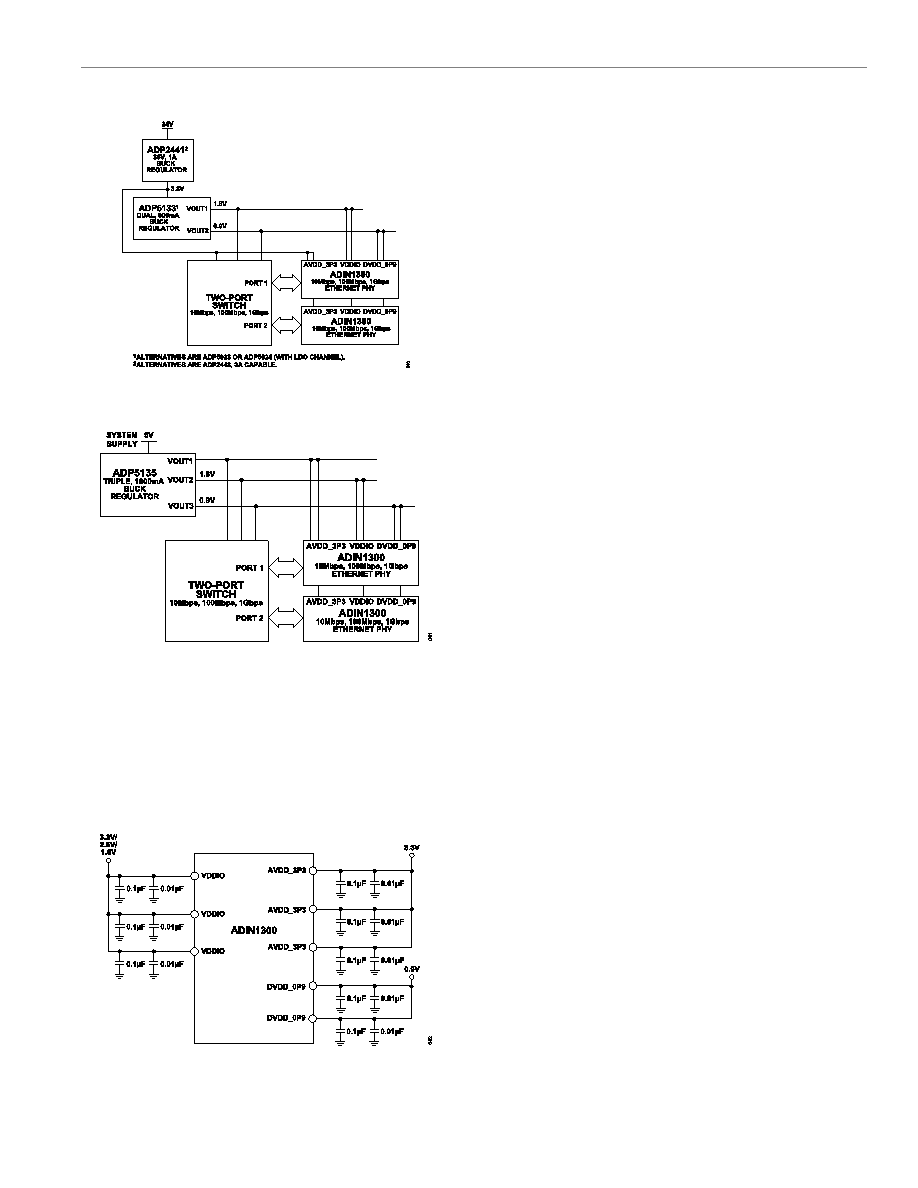

Figure 42. Recommended Power Solution with 24 V System Power, Where
RGMI is Operating at VDDIO = 1.8 V
Figure 43. Recommended Power Solution Using ADP5135 Triple Buck
Regulator to Supply All Three Voltage Rails
SUPPLY DECOUPLING
It is recommended to decouple each of the AVDD_3P3, VDDIO,
and DVDD_0P9 supply pins with 0.1 μF in parallel with 0.01 μF
capacitors to ground. Place decoupling capacitors as close to the
relevant pins as possible and ensure that the capacitor ground is
routed directly into the plane.
Figure 44. Supply Decoupling Overview
