SSM2529
Data Sheet
Rev. 0 | Page 10 of 52
TYPICAL PERFORMANCE CHARACTERISTICS

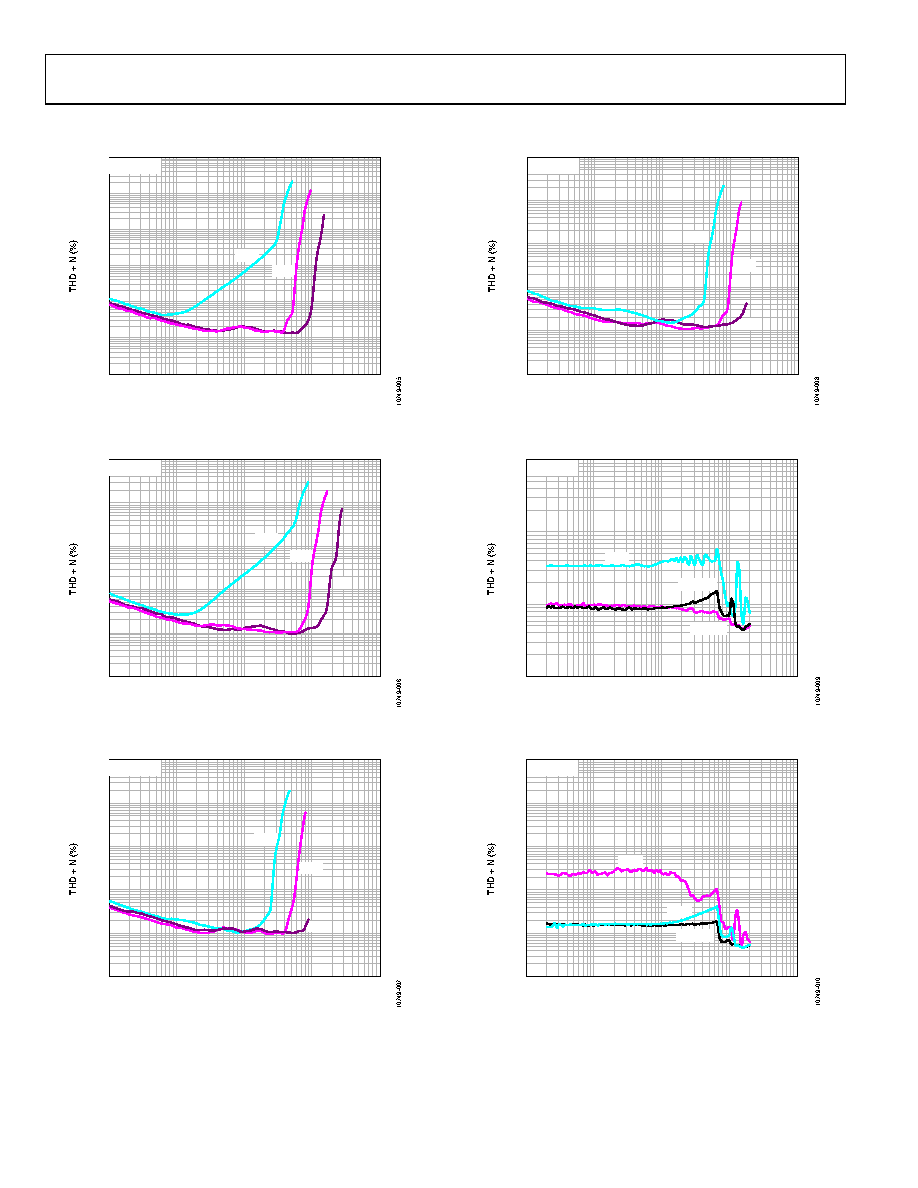

Figure 5. THD + N vs. Output Power into 8 Ω, 5.0 V Gain Setting
Figure 6. THD + N vs. Output Power into 4 Ω, 5.0 V Gain Setting
Figure 7. THD + N vs. Output Power into 8 Ω, 3.6 V Gain Setting
Figure 8. THD + N vs. Output Power into 4 Ω, 3.6 V Gain Setting
Figure 9. THD + N vs. Frequency into 8 Ω, SPKVDD = 5.0 V
Figure 10. THD + N vs. Frequency into 4 Ω, SPVKDD = 5.0 V
100
10
1
0.1
0.01
0.001
0.0001
0.001
0.01
0.1
1
10
POUT (W)
3.6V
2.5V
5V
8Ω + 33µH
100
10
1
0.1
0.01
0.001
0.001
0.01
0.1
1
10
POUT (W)
3.6V
2.5V
5V
4Ω + 15µH
100
10
1
0.1
0.01
0.001
0.001
0.01
0.1
1
10
POUT (W)
3.6V
2.5V
5V
8Ω + 33µH
100
10
1
0.1
0.01
0.001
0.001
0.01
0.1
1
10
POUT (W)
3.6V
2.5V
5V
4Ω + 15µH
1
0.1
0.01
0.001
0.01
0.1
1
10
100
FREQUENCY (kHz)
1W
500mW
250mW
8Ω + 33µH
100
10
1
0.1
0.01
0.001
0.01
0.1
1
10
100
FREQUENCY (kHz)
4Ω + 15µH
2W
1W
500mW
