Data Sheet
SSM2529
Rev. 0 | Page 11 of 52

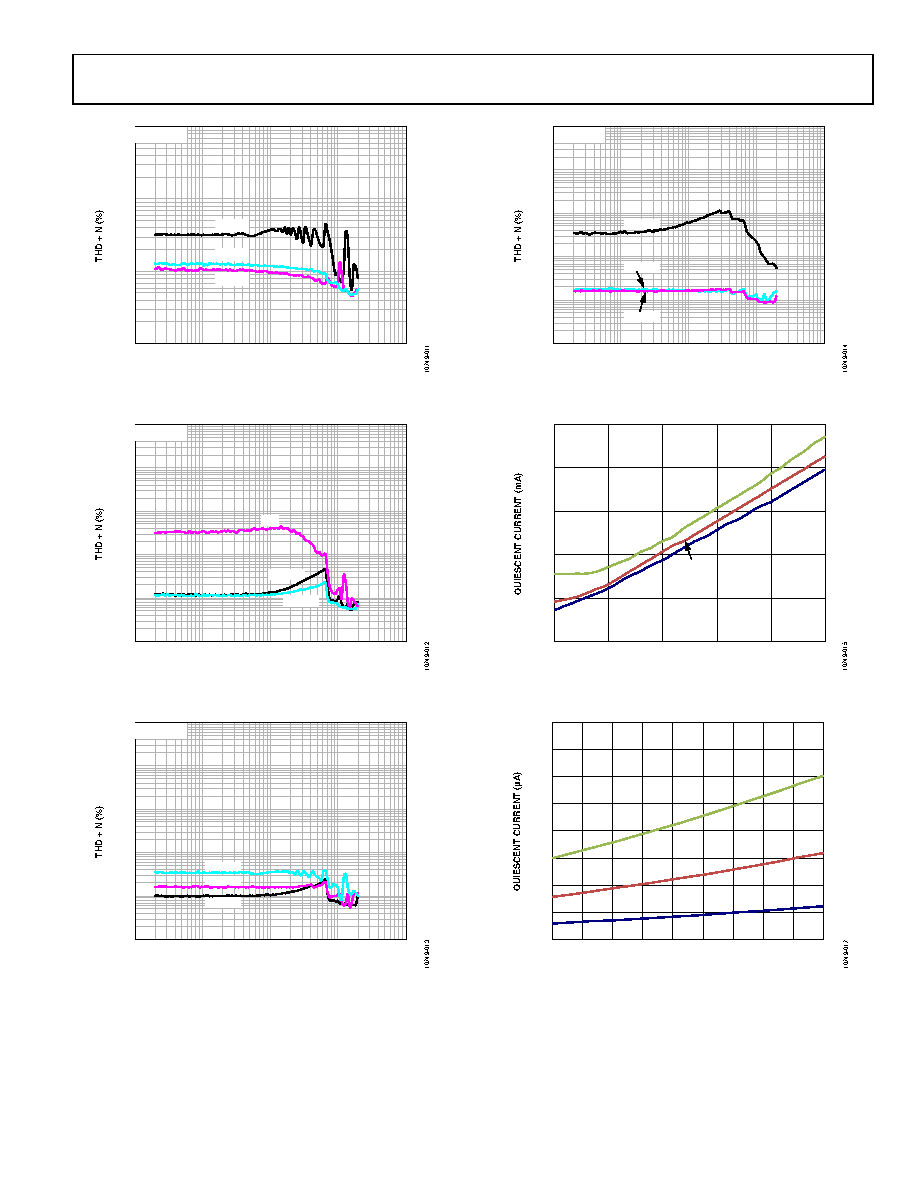

Figure 11. THD + N vs. Frequency into 8 Ω, SPVKDD = 3.6 V
Figure 12. THD + N vs. Frequency into 4 Ω, SPVKDD = 3.6 V
Figure 13. THD + N vs. Frequency into 8 Ω, SPKVDD = 2.5 V
Figure 14. THD + N vs. Frequency into 4 Ω, SPVKDD = 2.5 V
Figure 15. Quiescent Current (Power Stage) vs. Supply Voltage
Figure 16. Quiescent Current (Digital Core) vs. Supply Voltage
1
0.1
0.01
0.001
0.01
0.1
1
10
100
FREQUENCY (kHz)
500mW
250mW
125mW
8Ω + 33µH
100
10
1
0.1
0.01
0.001
0.01
0.1
1
10
100
FREQUENCY (kHz)
4Ω + 15µH
500mW
1W
250mW
100
10
1
0.1
0.01
0.001
0.01
0.1
1
10
100
FREQUENCY (kHz)
8Ω + 33µH
62.5mW
125mW
250mW
100
10
1
0.1
0.01
0.001
0.01
0.1
1
10
100
FREQUENCY (kHz)
4Ω + 15µH
250mW
500mW
125mW
3.4
3.2
3.0
2.8
2.6
2.4
2.5
3.0
3.5
4.0
4.5
5.0
SPKVDD (V)
NO LOAD
8Ω
4Ω
800
700
600
500
400
300
200
100
0
DVDD (V)
1.08
1.18
1.28
1.38
1.48
1.58
1.68
1.78
1.88
1.98
8kHz
24kHz
48kHz
