SSM2529

Data Sheet

Rev. 0 | Page 12 of 52

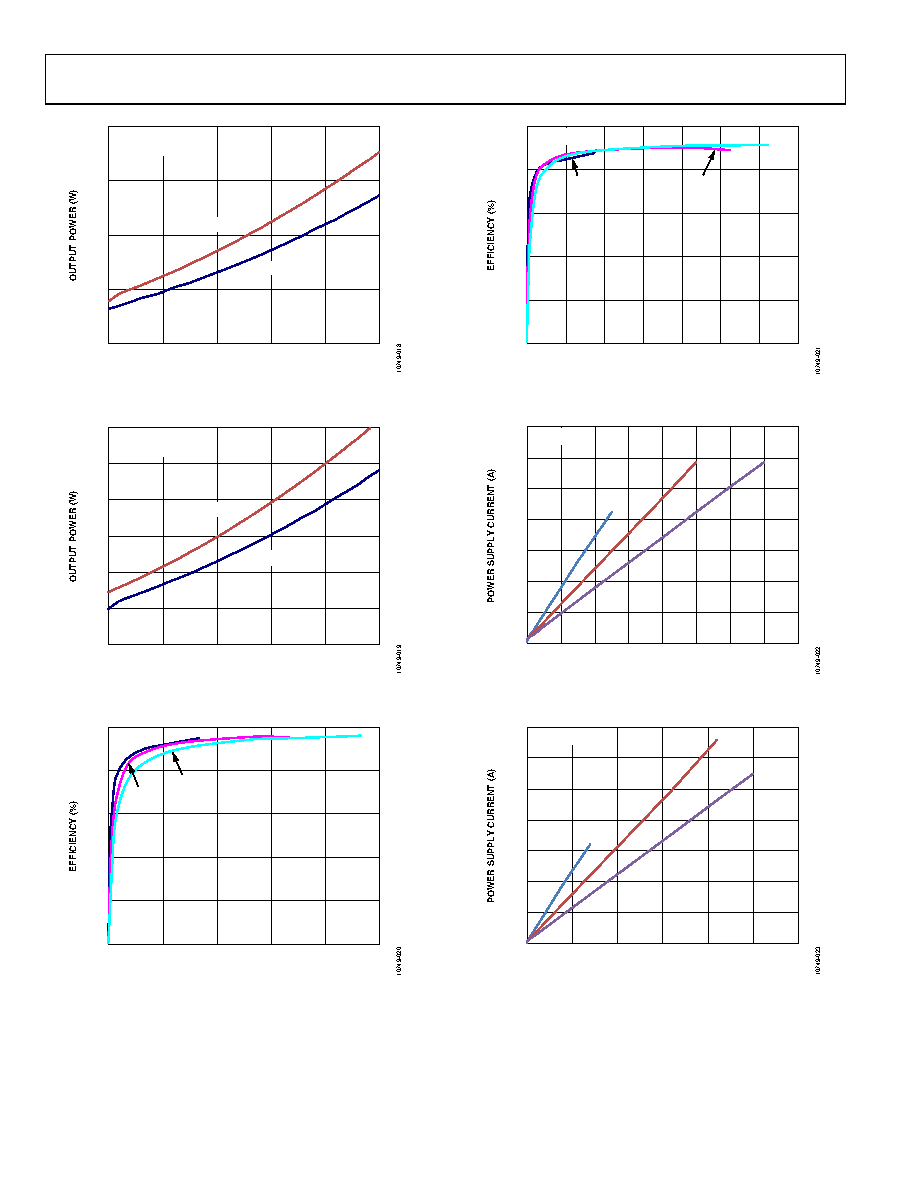

Figure 17. Maximum Output Power vs. Supply Voltage, RL = 8 Ω

Figure 18. Maximum Output Power vs. Supply Voltage, RL = 4 Ω

Figure 19. Efficiency vs. Output Power into 8 Ω

Figure 20. Efficiency vs. Output Power into 4 Ω

Figure 21. Power Supply Current vs. Output Power, RL = 8 Ω

Figure 22. Power Supply Current vs. Output Power, RL = 4 Ω

2.0

1.5

1.0

0.5

2.5

3.0

3.5

4.0

4.5

5.0

SPKVDD (V)

fIN = 1kHz

RL = 8Ω + 33µH

THD+N = 10%

THD+N = 1%

3.0

2.5

2.0

1.5

1.0

0.5

2.5

3.0

3.5

4.0

4.5

5.0

SPKVDD (V)

fIN = 1kHz

RL = 4Ω + 15µH

THD+N = 1%

THD+N = 10%

100

1.5

1.2

0.9

0.6

0.3

POUT (W)

8Ω + 33µH

2.5V

3.6V

100

2.8

1.2

1.6

2.0

2.4

0.8

0.4

POUT (W)

4Ω + 15µH

2.5V

3.6V

0.35

0.30

0.25

0.20

0.15

0.10

0.05

1.6

1.2

1.4

1.0

0.8

0.6

0.4

0.2

POUT (W)

8Ω + 33µH

2.5V

3.6V

3.0

2.5

2.0

1.5

1.0

0.5

POUT (W)

4Ω + 15µH

0.1

0.2

0.3

0.4

0.5

0.6

0.7

2.5V

3.6V
