Data Sheet
SSM2529
Rev. 0 | Page 23 of 52
I2C Read and Write Operations
Table 42 shows the timing of a single-word write operation.
Every ninth clock, the SSM2529 issues an acknowledge by
pulling SDA low.
Table 43 shows the timing of a burst mode write sequence as an
example where the target destination registers are two bytes. The
SSM2529 knows to increment its subaddress register every byte
because the requested subaddress corresponds to a register or
memory area with a byte word length.
The timing of a single-word read operation is shown in Table 44.
Note that the first R/W bit is 0, indicating a write operation. This
is because the subaddress still needs to be written to set up the
internal address. After the SSM2529 acknowledges the receipt of
the subaddress, the master must issue a repeated start command
followed by the chip address byte with the R/W bit set to 1 (read).
This causes the SSM2529 SDA to reverse and begin driving data
back to the master. The master then responds every ninth pulse
with an acknowledge pulse to the SSM2529.
Table 42 to Table 45 use the abbreviations shown in Table 41.
Table 41. Symbols for Table 42 to Table 45
Symbol
Meaning
S
Start bit
P
Stop bit
A
M
Acknowledge by master
A
S
Acknowledge by slave

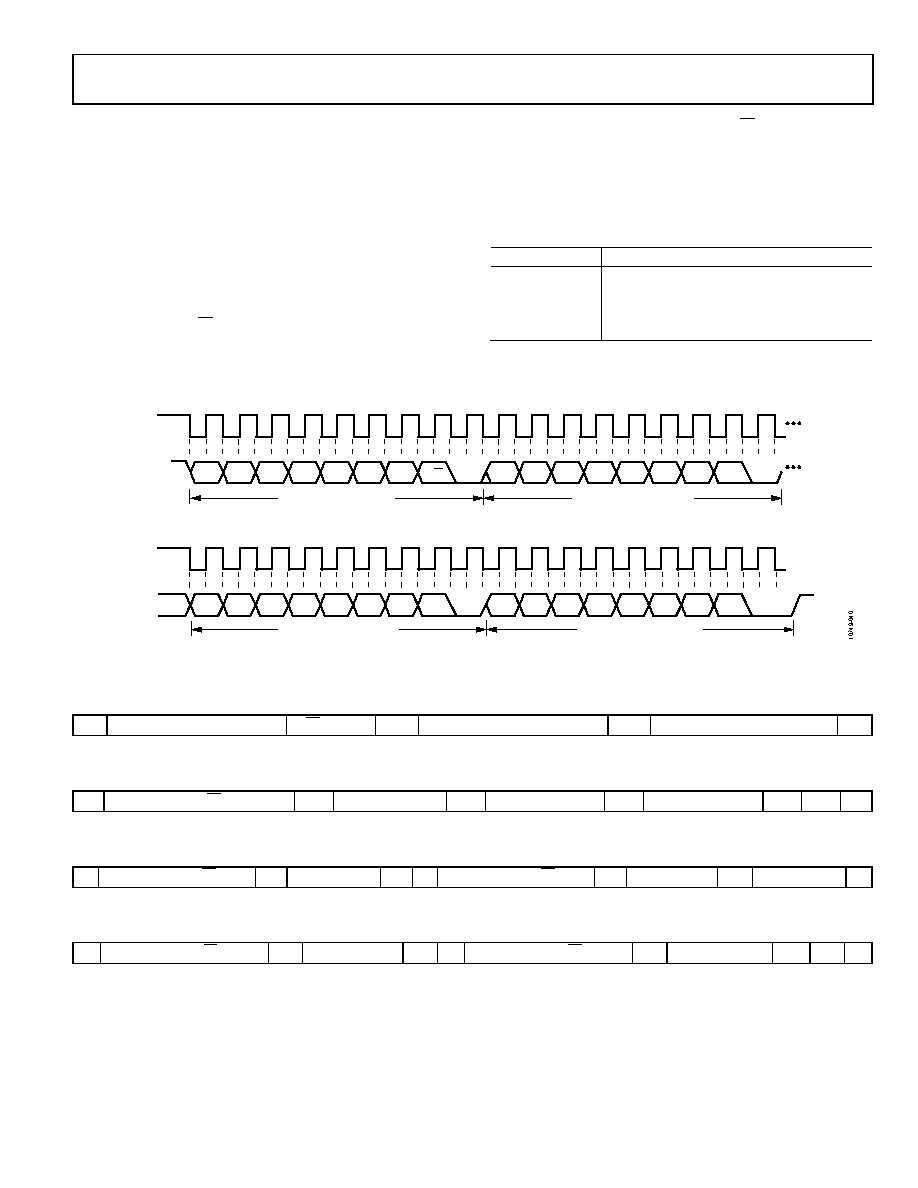

Figure 41. I2C Read and Write Timing
Table 42. Single-Word I2C Write Format
S
IC Address (7 Bits)
R/W = 0
AS
Subaddress (8 bits)
AS
Data Byte 1 (8 Bits)
P
Table 43. Burst Mode I2C Write Format
S
Chip address, R/W = 0
A
S
Subaddress
A
S
Data-Word 1
A
S
Data-Word 2
A
S
…
P
Table 44. Single-Word I2C Read Format
S
Chip address, R/W = 0
A
S
Subaddress
A
S
S
Chip address, R/W = 1
A
S
Data Byte 1
A
M
Data Byte N
P
Table 45. Burst Mode I2C Read Format
S
Chip address, R/W = 0
A
S
Subaddress
A
S
S
Chip address, R/W = 1
A
S
Data-Word 1
A
M
…
P
SCK
SDA
START BY
MASTER
STOP BY
MASTER
SCK
(CONTINUED)
SDA
(CONTINUED)
FRAME 3
DATA BYTE 1
FRAME 4
DATA BYTE 2
FRAME 1
CHIP ADDRESS BYTE
FRAME 2
SUBADDRESS BYTE
ACK
ACK
ACK
ACK
R/W
